PE82P5015

Overview

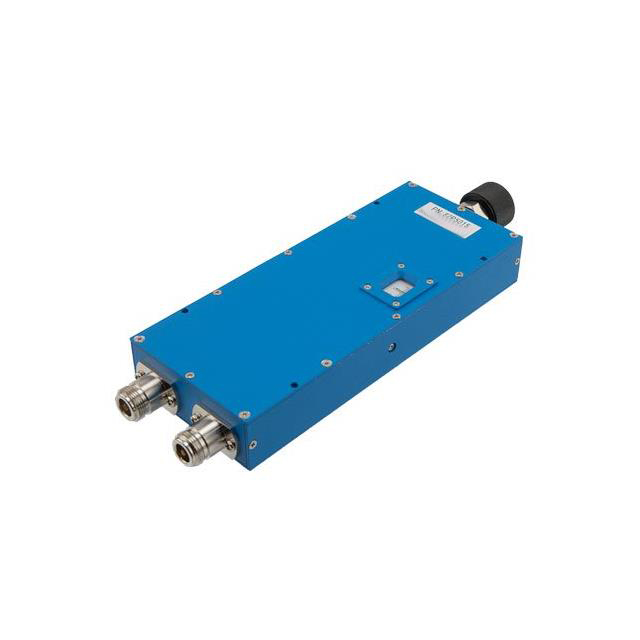

The Pasternack PE82P5015 is an adjustable phase shifter designed for radio frequency applications spanning from DC to 4 GHz. It features N-type connectors and provides a precise phase adjustment capability of 90 degrees per GHz. The unit includes a precision rotary dial for manual control, allowing for continuous phase variation within its operational bandwidth. This component serves as a fundamental element in RF signal processing systems requiring accurate phase manipulation.

Feature Summary

• Adjustable phase shift functionality with a range of 90 degrees per GHz
• Operates across a frequency spectrum from DC to 4 GHz
• Equipped with N-type connectors for standard RF interfacing
• Utilizes a precision rotary dial for manual phase control

Applications

• RF signal processing systems
• Antenna array beam steering
• Test and measurement instrumentation
• Wireless communication equipment

Procurement Notes

Verify the specific connector type and physical dimensions against system requirements before integration. Confirm that the operating frequency range aligns with the intended application bandwidth. Ensure compatibility with existing RF infrastructure regarding impedance and power handling capabilities. Review the manufacturer datasheet for detailed mechanical and electrical specifications to guarantee proper installation and performance.

Selection Notes

Select this component when manual phase adjustment is required within the DC to 4 GHz range. Consider the N-type interface for compatibility with standard RF cabling. Evaluate the need for precision rotary control versus digital alternatives based on system complexity. Assess the physical size and mounting requirements to ensure fit within the designated enclosure or rack space.

Part Context

This device belongs to the category of phase detectors and shifters, specifically falling under adjustable phase shifters. It is categorized under wireless and RF integrated circuits by the manufacturer. The product is part of Pasternack's portfolio of RF components designed for various communication and testing applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult the manufacturer directly for compatible alternatives or cross-reference options based on specific technical requirements.
