Product Detailed Parameters
- Description：PHASE SHIFTER: N F 0-4GHZ
- Series：-
- Mfr：Pasternack
- Package：Case
- Function：Phase Shifter, Trimmer
- Frequency：0Hz ~ 4GHz
- RF Type：Radar
- Secondary Attributes：180° Phase Shift
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

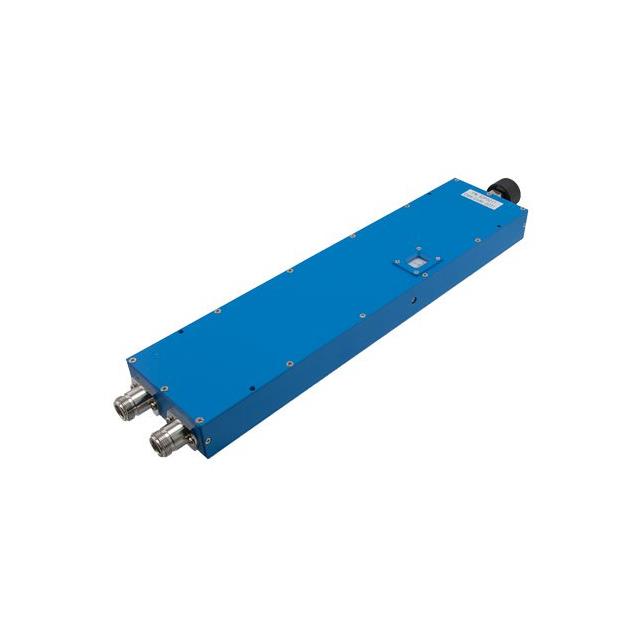

The PE82P5017 is an adjustable phase shifter manufactured by Pasternack, designed for RF applications spanning from DC to 4GHz. It features N-type connectors and provides a linear phase adjustment capability of 180 degrees per GHz. This component belongs to the Adjustable Phase Shifters series within the Wireless & RF Integrated Circuits category. The unit weighs 1.724 kg and is supplied in bulk packaging. It is identified as a new product from the manufacturer.
Feature Summary
- Provides continuous phase adjustment across the specified frequency range
- Features N-type connectors for standard RF interfacing
- Delivers linear phase shift rate of 180 degrees per GHz
Applications
- Radar systems requiring precise phase control
- Wireless communication infrastructure testing
- RF measurement and instrumentation setups
Procurement Notes
Verify the specific datasheet version before integration, as documentation dates vary. Confirm that the N-type connector interface matches your system requirements. Ensure the operating environment supports the device's weight and physical dimensions. Check for any recent updates to the RoHS compliance status or manufacturing origin details provided by Pasternack.
Selection Notes
Select this component when a wideband adjustable phase shift is required up to 4GHz. The linear 180-degree-per-GHz characteristic suits applications needing proportional phase control. Consider the bulk packaging format for integration into custom assemblies. Evaluate the N-type connector compatibility against existing RF chain components.
Part Context
This part falls under the Adjustable Phase Shifters series by Pasternack, categorized within Wireless & RF Integrated Circuits. It serves as a phase detector or shifter solution for high-frequency applications. The product represents a specialized RF module distinct from general-purpose discrete components, focusing on signal timing manipulation.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should consult Pasternack directly for equivalent models with similar frequency ranges and connector types.
