PE82P5020

Overview

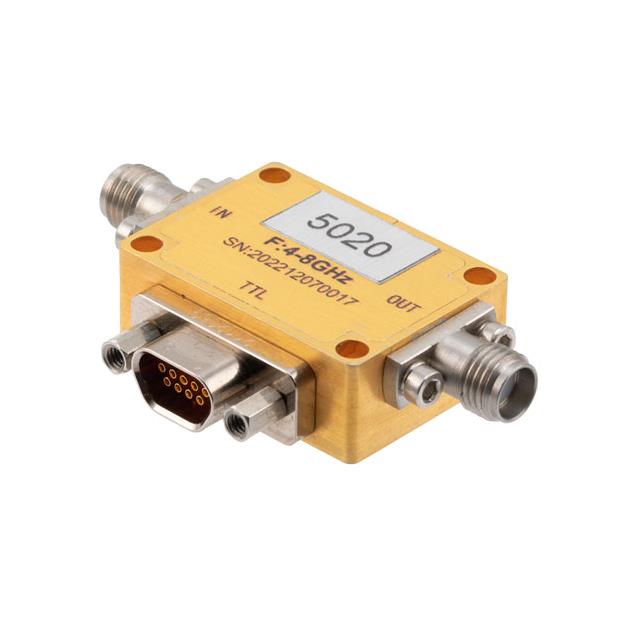

The PE82P5020 is a 6-bit TTL programmable phase shifter manufactured by Pasternack. It operates within a frequency range of 4 GHz to 8 GHz and provides a total phase range of 360 degrees. The device features a control step size of 5.625 degrees, allowing for precise phase adjustment. It supports a maximum input power (Pin) of +30 dBm and utilizes SMA connectors for RF interfacing. This component is designed for applications requiring digital control over signal phase in wireless and RF systems.

Feature Summary

• Digital TTL programmable control interface for phase adjustment
• Wideband operation covering 4 GHz to 8 GHz frequencies
• Full 360-degree continuous phase range capability
• High power handling with +30 dBm maximum input rating

Applications

• Wireless communication systems requiring phase alignment
• RF test and measurement instrumentation
• Phased array antenna beam steering networks
• Signal processing equipment needing precise phase shifting

Procurement Notes

Verify the specific SMA connector gender and pin configuration against your system requirements before integration. Confirm that the TTL logic levels match your control circuitry voltage standards. Ensure the operating environment remains within the specified temperature range for optimal performance. Check for any updated datasheet revisions that may affect mechanical dimensions or electrical tolerances prior to final design approval.

Selection Notes

Select this component when a wide bandwidth from 4 to 8 GHz is required alongside high power handling capabilities. The 6-bit resolution offers a balance between control precision and complexity. Consider the SMA interface compatibility with existing RF infrastructure. Evaluate the thermal management needs given the +30 dBm power rating to ensure reliable long-term operation in dense assemblies.

Part Context

This part belongs to Pasternack's series of digital TTL programmable phase shifters. It is categorized under wireless and RF integrated circuits, specifically as a phase detector or shifter. The product is identified by manufacturer number PE82P5020 and is packaged in bulk quantities. It serves as a critical active component for manipulating signal phase in high-frequency electronic designs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users must verify functional equivalence regarding frequency range, bit resolution, and interface type if considering alternative manufacturers. Direct cross-referencing requires access to full technical specifications of potential replacement devices.
