PE8509

Overview

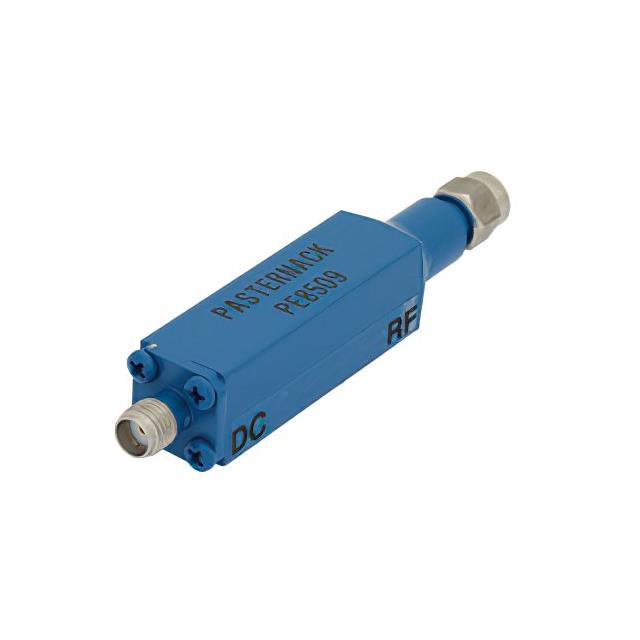

The PE8509 is an SMA calibrated noise source module manufactured by Pasternack. It operates within a frequency range of 12 GHz to 18 GHz and provides a nominal Excess Noise Ratio (ENR) of 30.0 dB with a tolerance of ±1 dB. The device requires a +28 VDC power supply and features an SMA female input connector paired with an SMA male output connector. Designed for 50 Ohm impedance systems, it exhibits a voltage sensitivity of 0.1 dB/%V.

Feature Summary

• Provides high-output calibrated noise generation for RF testing applications
• Features SMA male-to-female interface configuration for system integration
• Operates on a standard +28 VDC power supply requirement

Applications

• Receiver sensitivity testing
• Noise figure measurement systems
• RF component characterization

Procurement Notes

Verify the specific ENR value required for your application, as documentation references both 26 dB and 30.0 dB specifications for this model. Confirm that the +28 VDC power supply matches your test setup capabilities. Ensure the SMA female-to-male connector orientation aligns with your signal chain requirements before finalizing procurement orders.

Selection Notes

Select this module when a broadband noise source covering the 12 GHz to 18 GHz range is necessary. The unit is suitable for applications requiring a stable noise output with defined voltage sensitivity characteristics. Consider the physical connector types and DC power requirements when designing the surrounding test infrastructure.

Part Context

This component belongs to Pasternack's Octave Band Noise Sources product line. It serves as a specialized generator for characterizing radio frequency performance across microwave frequencies. The module integrates internal circuitry to produce consistent excess noise ratios for accurate system calibration.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
