PE85N1010

Overview

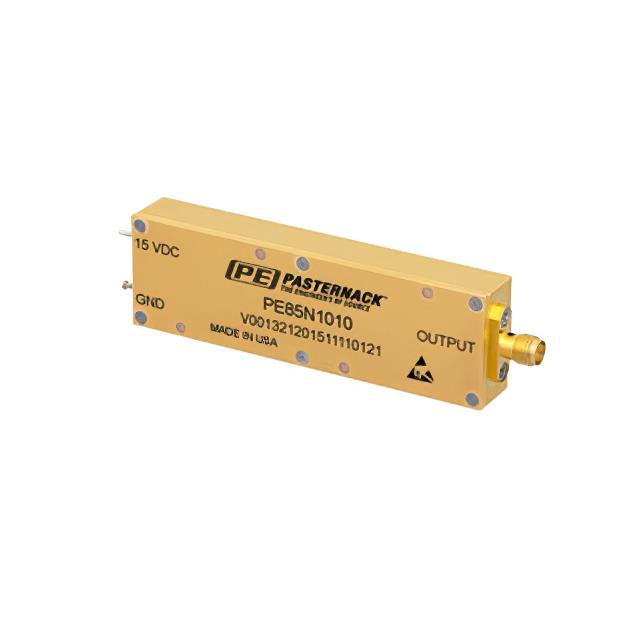

The PE85N1010 is an amplified RF noise source module manufactured by Pasternack. It operates within a frequency range of 0.1 MHz to 500 MHz and delivers an output power of +10 dBm. The device requires a +15 VDC supply voltage and features SMA female connectors for interfacing. It provides an excess noise ratio (ENR) of 10 dB with a noise density of -77 dBm/Hz. The unit maintains a temperature coefficient of 0.025 dB/°C and exhibits a tolerance of ±1.5 dB. Designed as a 50 Ohm module, it serves as a precise radio frequency component for signal generation applications.

Feature Summary

• Amplified noise generation capability across the specified frequency band
• Integrated SMA female connector interface for direct system integration
• Stable thermal performance with defined temperature coefficient

Applications

• RF receiver sensitivity testing
• Noise figure measurement systems
• Calibration of RF test equipment

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current documentation to ensure correct configuration. Confirm that the required supply voltage matches the +15 VDC specification provided in the datasheet. Check connector gender and type compatibility with existing test fixtures. Ensure environmental conditions align with the stated temperature coefficient limits during operation.

Selection Notes

Select this module when an amplified noise source is required for frequencies up to 500 MHz. Consider the +10 dBm output power level relative to downstream device input limits. Evaluate the need for SMA connectivity versus other interface types. Assess whether the 10 dB ENR meets the specific measurement dynamic range requirements of the application.

Part Context

This component belongs to Pasternack's amplified noise source series. It is designed as a benchtop or integrated module for radio frequency engineering tasks. The product line focuses on providing calibrated noise signals for testing and calibration purposes in electronic measurement environments.

Replacement Considerations

Consult official substitution lists for compatible models. Verify electrical parameters such as frequency range and output power match before swapping components.
