PE85N1013

Overview

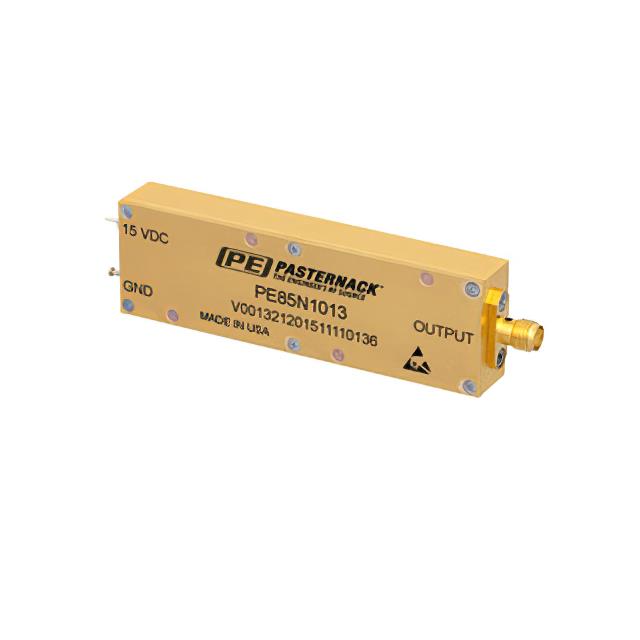

The PE85N1013 is an SMA Amplified Noise Source Module manufactured by Pasternack. It operates within a frequency range of 10 MHz to 6 GHz. The module provides an output power (Pout) of -14 dBm and requires a +15 VDC supply voltage. It features an Excess Noise Ratio (ENR) of -14 dB. The component utilizes SMA connectors for interface connections and is classified as an RF IC Noise Source suitable for ATE applications.

Feature Summary

• Amplified noise source generation capability
• SMA connector interface design
• ATE application suitability

Applications

• RF test equipment calibration
• Automated Test Equipment (ATE) systems
• Noise figure measurement setups

Procurement Notes

Verify the specific part number PE85N1013 against official Pasternack documentation to confirm active status and exact electrical specifications. Ensure compatibility with +15 VDC power requirements and SMA connector interfaces before integration into existing RF test infrastructure.

Selection Notes

Select this module when an amplified noise source with SMA connectivity is required for frequencies between 10 MHz and 6 GHz. Consider the -14 dBm output power and +15 VDC supply constraints during system design. Confirm that the ENR specification meets the sensitivity requirements of the target measurement application.

Part Context

This component belongs to Pasternack's RF Misc ICs and Modules category, specifically designed as a noise source generator. It is distinct from passive components or standard amplifiers, serving primarily as a reference signal generator for RF testing environments requiring precise noise characteristics.

FAQ

What is the operating frequency range of the PE85N1013?

The PE85N1013 operates within a frequency range of 10 MHz to 6 GHz.

What type of connectors does the PE85N1013 use?

The module uses SMA connectors for its RF interface connections.
