PE85N1014

$953.90

Description：SMA Calibrated, Integral Isolato
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:1fb61ce77e6d Category: RF Misc ICs and Modules Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：SMA Calibrated, Integral Isolato
Series：-
Mfr：Pasternack
Package：Retail Package
Function：Noise Source
Frequency：3.7GHz ~ 4.2GHz
RF Type：Frequency Divider
Secondary Attributes：SMA Connectors
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

PE85N1014

Overview

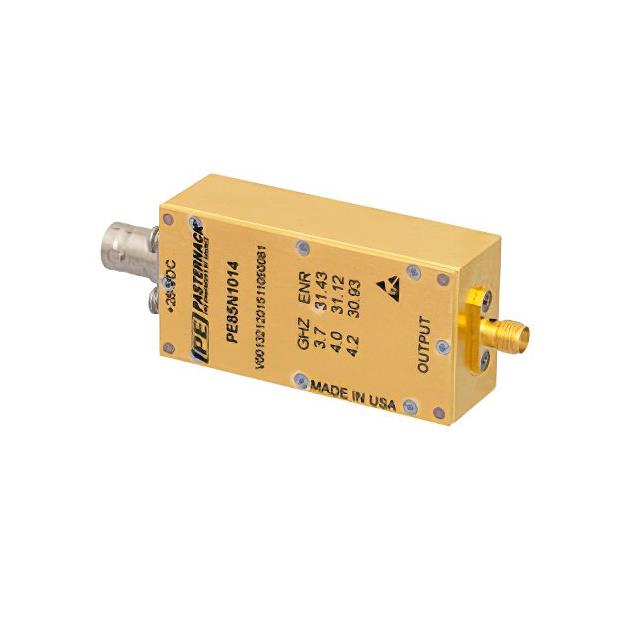

The PE85N1014 is a coaxial packaged calibrated noise source module manufactured by Pasternack. It operates within the frequency range of 3.7 GHz to 4.2 GHz and features an integral isolator. The device provides an Excess Noise Ratio (ENR) between 30 dB and 35 dB with a flatness specification of ± 0.75 dB. It utilizes SMA connectors for interface and requires a +28 VDC power supply. This component is designed for precise RF testing applications requiring stable noise generation.

Feature Summary

Integral isolator included for improved performance stability
Calibrated output for accurate measurement reference
Coaxial packaging design for reliable signal transmission

Applications

RF system noise figure measurements
Receiver sensitivity testing
Calibration of noise measurement equipment

Procurement Notes

Verify the specific ENR value required, as the datasheet indicates a range of 30 to 35 dB. Confirm that the +28 VDC power supply requirement matches your test setup capabilities. Ensure SMA connector compatibility with existing interconnects. Check for any specific calibration certificates or traceability requirements needed for your quality assurance processes before finalizing the order.

Selection Notes

Select this model when a noise source in the 3.7–4.2 GHz band is required. The integral isolator makes it suitable for applications where impedance matching stability is critical. Consider the ± 0.75 dB flatness if high precision across the entire bandwidth is necessary. Compare against other Pasternack models like the PE85N1001 or PE85N1002 if different frequency ranges or ENR levels are needed.

Part Context

This component belongs to Pasternack's PE Series of RF modules. These modules are designed for reliable signal transmission and testing in communication systems. The PE85N1014 specifically addresses the need for calibrated noise generation in microwave frequencies, supporting various instrumentation and telecommunications equipment setups.
