Product Detailed Parameters
- Description：SMA Calibrated, Integral Isolato
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Noise Source
- Frequency：7.2GHz ~ 8.4GHz
- RF Type：Frequency Divider
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

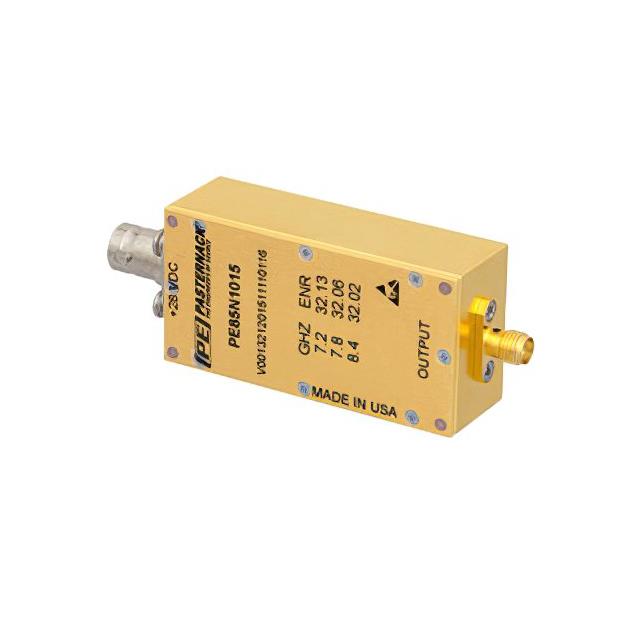

The Pasternack PE85N1015 is a coaxial packaged, SMA-calibrated noise source module featuring an integral isolator. It operates within the frequency range of 7.2 GHz to 8.4 GHz and delivers an excess noise ratio (ENR) output of 30 dB. The unit requires a +28 VDC power supply for operation. Designed as a precision RF component, it integrates calibration data directly into the module structure to ensure measurement accuracy across its specified microwave band.
Feature Summary
- Integral isolator design for improved signal isolation
- SMA calibrated construction for measurement precision
- Coaxial packaged module format
Applications
- Noise figure measurement systems
- RF receiver sensitivity testing
- Microwave component characterization
Procurement Notes
Verify the specific serial number against the physical unit upon receipt, as inventory records may reference individual serialization. Confirm that the +28 VDC power requirement matches your test equipment capabilities. Ensure SMA connector compatibility with your existing cabling infrastructure before finalizing procurement orders.
Selection Notes
Select this model when a 30 dB ENR is required specifically within the X-band range of 7.2 to 8.4 GHz. The integral isolator makes it suitable for applications demanding high reverse isolation without additional external components. Compare against lower ENR variants if system dynamic range allows for reduced noise injection levels.
Part Context
This module belongs to Pasternack's line of calibrated noise sources designed for precise RF testing. Unlike generic noise generators, these units provide factory-calibrated ENR values traceable to standards. The PE85N1015 specifically targets X-band applications where consistent noise performance and built-in isolation are critical for accurate receiver testing.
Replacement Considerations
Direct substitutes include other Pasternack models in the PE85N series with matching frequency ranges. Verify ENR specifications carefully, as adjacent models like the PE85N1002 offer different ENR levels and broader bandwidths that may not fit narrowband X-band requirements.
