PE8600

Overview

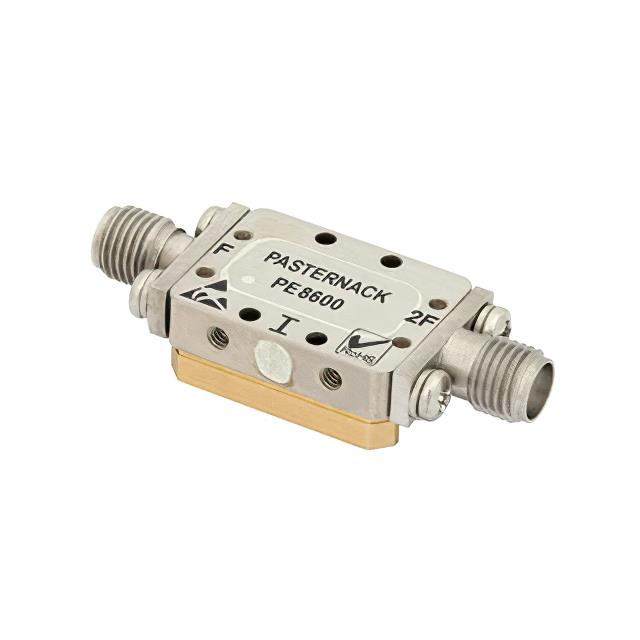

The PE8600 is a coaxial frequency doubler manufactured by Pasternack. It operates with an input frequency range of 1.5 GHz to 5 GHz and produces an output frequency range of 3 GHz to 10 GHz. The component utilizes SMA connectors and maintains a characteristic impedance of 50 Ohms. This module is designed for general-purpose RF applications requiring frequency multiplication.

Feature Summary

• Performs frequency doubling from input to output bands
• Features SMA connector interface
• Maintains 50 Ohm system impedance

Applications

• General purpose RF signal generation
• Frequency multiplier circuits
• RF test and measurement equipment

Procurement Notes

Verify the specific datasheet version before integration, as manufacturer specifications may be updated. Confirm that the SMA connector type matches the system requirements. Ensure the operating environment stays within the specified thermal limits defined in the official documentation.

Selection Notes

Select this component when a fixed frequency doubling ratio is required across the 1.5 to 5 GHz input band. Consider the physical size and weight constraints if space is limited. Verify compatibility with existing SMA infrastructure in the design.

Part Context

This part belongs to Pasternack's line of RF coaxial frequency multipliers. It serves as a specialized module for shifting signal frequencies upward. The product is distinct from amplifiers or passive filters in its active frequency conversion function.

Replacement Considerations

No public substitute part numbers are documented. Evaluate alternative frequency doublers based on matching input/output ranges and connector types.
