Product Detailed Parameters
- Description：50 Ohm SMA Frequency Doubler Wit
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Frequency Doubler
- Frequency：4GHz ~ 9GHz, 8GHz ~ 18GHz
- RF Type：General Purpose
- Secondary Attributes：-
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

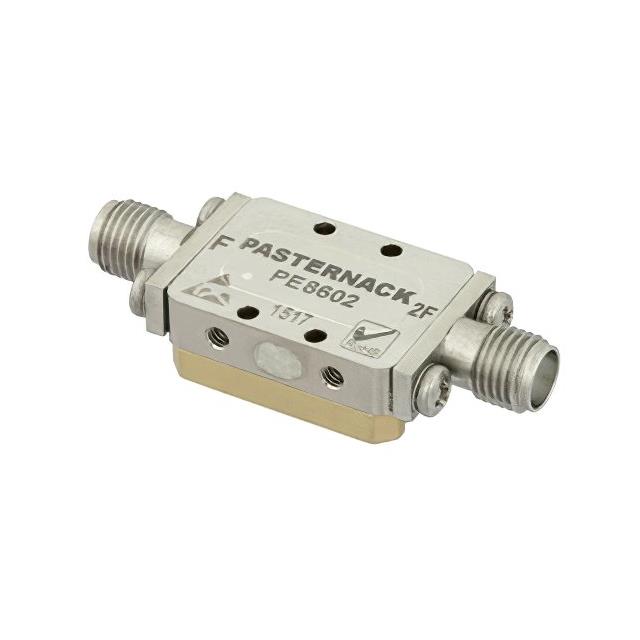

The Pasternack PE8602 is a coaxial frequency multiplier designed for RF applications. It operates with an input frequency range of 4 GHz to 9 GHz and produces an output frequency range of 8 GHz to 18 GHz. The device utilizes SMA connectors and maintains a 50 Ohm impedance throughout the signal path. It requires an input power level between 10 dBm and 13 dBm to function correctly. The module exhibits a conversion loss of approximately 10 dB during operation.
Feature Summary
- Provides frequency doubling functionality from input to output bands
- Utilizes standard SMA connectors for interface compatibility
- Maintains 50 Ohm system impedance for signal integrity
Applications
- RF signal generation systems requiring frequency multiplication
- Test and measurement equipment operating in microwave bands
- Communication subsystems needing harmonic generation
Procurement Notes
Verify that the required input power falls within the 10 to 13 dBm specification before integration. Ensure the host system impedance matches the 50 Ohm requirement to prevent signal reflection. Confirm connector type compatibility with existing cabling infrastructure. Check lead times as manufacturing schedules may vary.
Selection Notes
Select this component when a fixed frequency doubling ratio is required between 4-9 GHz and 8-18 GHz ranges. Consider the 10 dB conversion loss impact on overall system gain budget. Evaluate thermal management requirements based on input power levels. Compare against tunable multipliers if variable frequency coverage is necessary.
Part Context
This part belongs to the Pasternack family of RF coaxial frequency multipliers. These modules are engineered for general-purpose microwave applications where stable frequency multiplication is needed. The product line typically includes various models covering different frequency bands and connector types.
Replacement Considerations
Direct substitutes must match the 4-9 GHz input and 8-18 GHz output specifications. Verify SMA connector compatibility and 50 Ohm impedance matching. Check equivalent conversion loss and input power requirements for functional interchangeability.
