Product Detailed Parameters
- Description：WR-28 Waveguide 2x Active Freque
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Frequency Multiplier
- Frequency：13.25GHz ~ 20GHz, 26.5GHz ~ 40GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

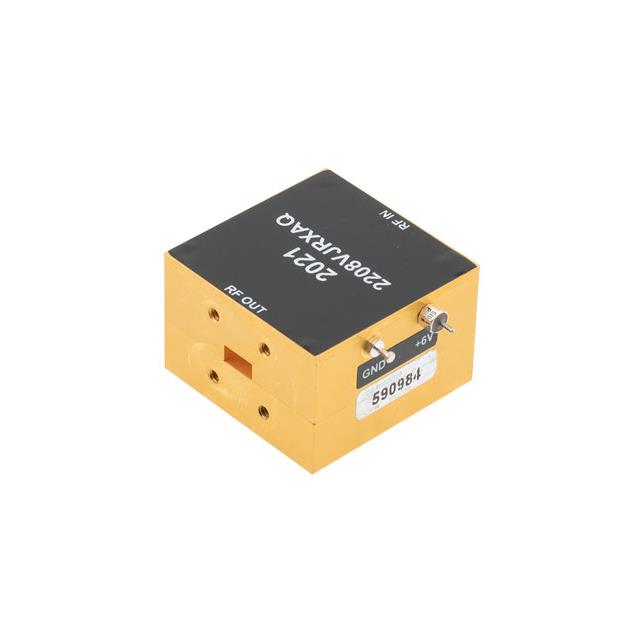

The Pasternack PE88X2021 is an active frequency multiplier designed for signal conditioning applications. It utilizes GaAs PHEMT semiconductor technology to double the input frequency range of 13.25GHz to 20GHz, producing a corresponding output frequency range of 26.5GHz to 40GHz. The component features SMA connectors for interface connectivity and provides a conversion gain of 13.25dB. This device operates within the millimeter-wave spectrum, supporting high-frequency signal generation tasks.
Feature Summary
- Active frequency doubling capability using efficient GaAs PHEMT technology
- SMA connector interfaces for standard RF integration
- Designed for general-purpose signal conditioning in millimeter-wave systems
Applications
- Millimeter-wave signal generation
- General-purpose frequency multiplication
- Signal conditioning circuits
Procurement Notes
Verify component authenticity through authorized channels. Confirm datasheet revisions match specific batch requirements. Check availability status as supply may be limited. Ensure environmental compliance documentation aligns with project specifications. Validate connector types and pinouts against system design constraints before procurement.
Selection Notes
Select this model when a precise doubling of the 13.25GHz to 20GHz input band is required. Consider the 26.5GHz to 40GHz output range for compatibility with downstream components. Evaluate the SMA interface for mechanical fit. Assess the conversion gain performance against system noise budget requirements. Verify power supply needs against available resources.
Part Context
This part belongs to the PE88X series of active multipliers from Pasternack. The series covers various frequency ranges by utilizing similar GaAs PHEMT technology. Other models in the family address different input-output frequency pairs, such as the PE88X2028 which handles 23GHz to 33GHz outputs. This specific variant targets the higher end of the Ku/Ka-band transition.
Replacement Considerations
Direct substitutes include other PE88X series models like PE88X2028 if frequency ranges differ. Cross-reference with generic GaAs multipliers only if custom design allows. Verify that alternative parts meet the same SMA interface and gain specifications. Check for pinout compatibility if physical replacement is necessary.
