PE88X2023

Overview

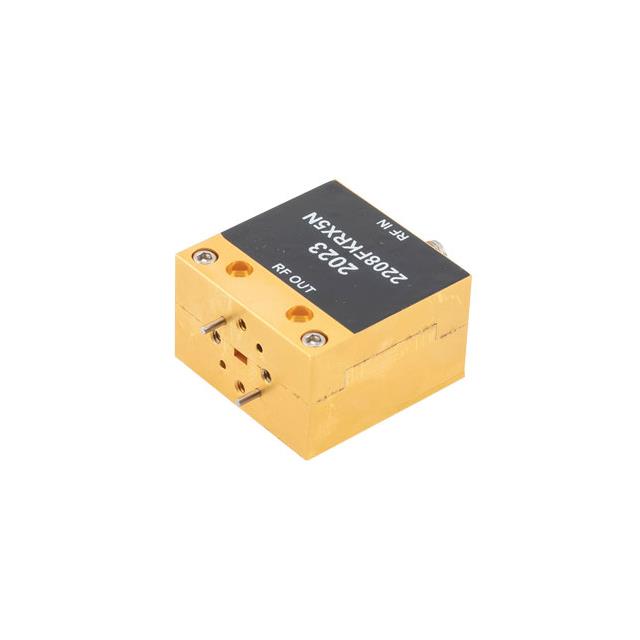

The PE88X2023 is a WR-15 waveguide active frequency multiplier designed for radar applications. It utilizes GaAs PHEMT technology to quadruple the input frequency range of 12.5GHz to 18.75GHz, producing an output in the V-band from 50GHz to 75GHz. The component features SMA connectors for input and UG-385/U flanged waveguide interfaces for output.

Feature Summary

• Quadruples input frequency using efficient GaAs PHEMT semiconductor technology
• Converts 12.5–18.75GHz input to 50–75GHz V-band output
• Integrates WR-15 waveguide structure with UG-385/U flanged interface

Applications

• Radar systems
• Satellite communication (SATCOM)
• Digital wireless system bit error rate testing

Procurement Notes

Verify the specific connector configuration and waveguide flange type against your system requirements before ordering. Confirm that the operating temperature range aligns with your environmental constraints. Ensure that the input power levels remain within the specified limits to prevent device damage. Check lead times as manufacturing may involve standard production cycles.

Selection Notes

Select this component when a direct conversion from sub-millimeter input frequencies to V-band output is required. It is suitable for systems needing high-efficiency multiplication without external passive components. Consider the physical size of the WR-15 waveguide interface for integration into existing chassis designs.

Part Context

This part belongs to Pasternack's PE88X series of active frequency multipliers. The series covers various frequency ranges using similar GaAs PHEMT technology. Other models in the line provide different multiplication factors or frequency bands, such as doubling inputs for lower millimeter-wave outputs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
