PE88X2027

Overview

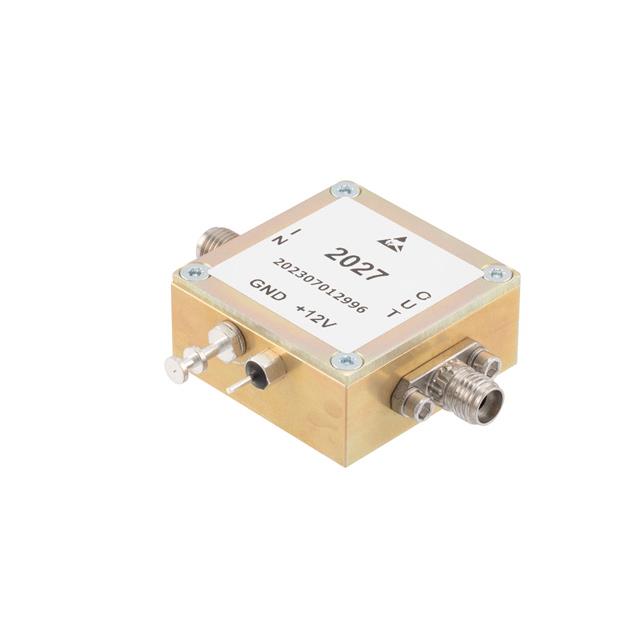

The PE88X2027 is a 2x active frequency multiplier manufactured by Pasternack. It operates with an input frequency range of 9 GHz to 14.5 GHz and produces an output frequency range of 18 GHz to 29 GHz. The device provides a conversion gain of 12.0 dB. It utilizes SMA connectors for interfacing and maintains a 50 Ohm impedance characteristic. The unit is designed for chassis mounting, ensuring secure installation in RF systems requiring signal conditioning.

Feature Summary

• Active frequency multiplication functionality
• SMA connector interface
• Chassis mount design

Applications

• RF signal generation
• Frequency synthesis systems
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version to confirm exact pinout configurations and mechanical dimensions prior to integration. Ensure that the input drive levels match the component specifications to maintain optimal performance and prevent damage. Confirm compatibility with existing chassis mounting hardware and thermal management requirements during the procurement phase.

Selection Notes

Select this component when a doubling of frequency within the specified microwave bands is required. Consider the 12.0 dB conversion gain and SMA interface compatibility with system architecture. Evaluate the chassis mounting style against available space constraints and ensure the input frequency range aligns with the source signal capabilities.

Part Context

This part belongs to the Pasternack SMA Frequency Multipliers series. It serves as a signal conditioning module designed to shift input frequencies to higher ranges. The product is categorized under general purpose RF ICs and modules, providing essential frequency translation capabilities for wireless applications.

Replacement Considerations

No public confirmed substitute part numbers are available.
