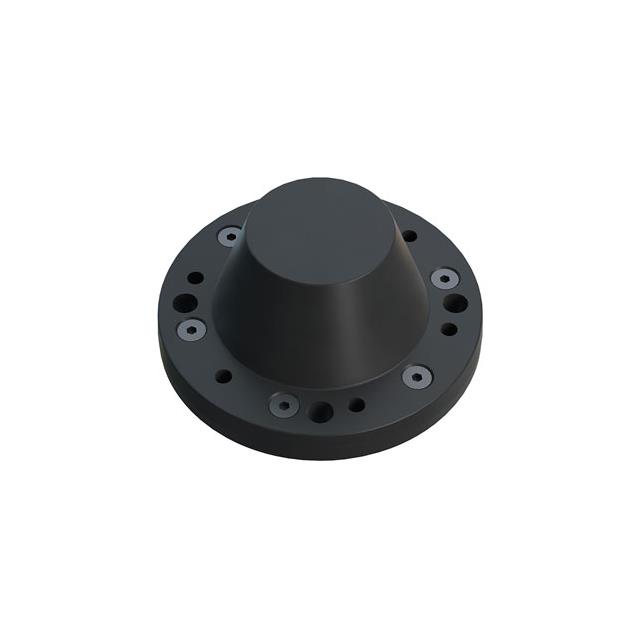

PEANGPS1017

$2,873.00

Description：Active GPS Antenna Dual Band L1/
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:68d3824bc4d9 Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PEANGPS1017 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is Active GPS Antenna Dual Band L1/. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PEANGPS1017

Description：Active GPS Antenna Dual Band L1/
Series：-
Mfr：Pasternack
Package：Retail Package
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.401GHz
Frequency Range：1.215GHz ~ 1.587GHz
Antenna Type：Module
Number of Bands：1
VSWR：-
Return Loss：-
Gain：21dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：-
Height (Max)：1.770" (44.96mm)
Applications：GNSS, GPS
Power - Max：-

Antennas RF datasheet and documents for PEANGPS1017

PEANGPS1017

Antennas RF Overview

The PEANGPS1017 is an active GPS antenna manufactured by Pasternack, designed for dual-band Global Navigation Satellite System (GNSS) reception. It operates on the L1 and L2 frequency bands, providing precise positioning capabilities for advanced navigation applications. The unit features an N-Type Female connector interface for secure cable attachment. It is engineered to meet MIL-STD-810 environmental standards, ensuring reliability in harsh conditions. Additionally, the component complies with Trade Agreements Act (TAA) requirements, making it suitable for government procurement projects.

Antennas RF Feature Summary

Dual-band L1/L2 GNSS reception capability
MIL-STD-810 environmental compliance
N-Type Female connector interface

Antennas RF Applications

Military navigation systems
Precision agriculture equipment
Geospatial surveying instruments

Antennas RF Procurement Notes

Verify TAA compliance status for specific project requirements. Confirm MIL-STD-810 certification details against current datasheet revisions. Ensure N-Type Female mating compatibility with existing cabling infrastructure. Check availability status as distribution may vary by region.

Antennas RF Selection Notes

Select this model for applications requiring dual-band L1/L2 signal processing. Suitable for environments demanding MIL-STD-810 ruggedness. Ideal for projects requiring TAA-compliant components. Consider connector type when designing RF front-end assemblies.

Antennas RF Part Context

This component belongs to Pasternack's active antenna portfolio. It complements their range of RF and microwave solutions. Designed for high-reliability satellite navigation tasks. Supports integration into complex GNSS receiver architectures.
