PEANKIT1008

Antennas RF Overview

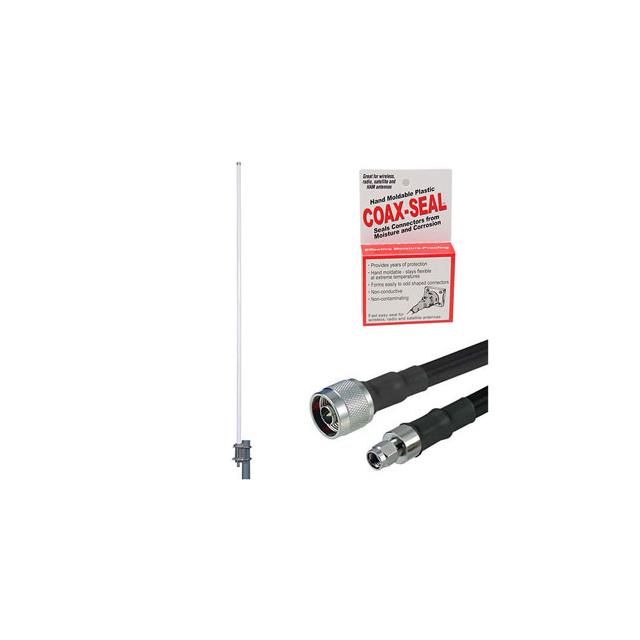

The PEANKIT1008 is an antenna upgrade kit designed for Helium Hotspot devices. It features a 900 MHz omni-directional antenna with an 8 dBi gain rating. The assembly includes a 6-foot low-loss cable utilizing 400 series coaxial construction. Connectivity is provided via an N Male connector on the antenna end and an RP-SMA plug on the device interface end, facilitating direct replacement or enhancement of standard hotspot antennas.

Antennas RF Feature Summary

• Provides enhanced signal reception through an 8 dBi gain omni-directional antenna design optimized for 900 MHz operations.
• Includes integrated low-loss cabling to minimize signal attenuation over the specified length between the antenna and the hotspot unit.
• Features standardized N Male to RP-SMA connector configuration for compatibility with specific Helium network hardware interfaces.

Antennas RF Applications

• Upgrading stock antennas on Helium Mobile Hotspot devices
• Enhancing RF coverage in indoor IoT deployment scenarios
• Improving network connectivity reliability for LoRaWAN gateways

Antennas RF Procurement Notes

Verify that the target Helium Hotspot model supports external antenna connections via RP-SMA ports. Confirm that the N Male connector on the new antenna aligns with any intermediate adapters or mounting brackets required for the specific installation environment. Ensure the 6-foot cable length accommodates the physical distance between the hotspot unit and the desired antenna placement location without excessive bending or strain.

Antennas RF Selection Notes

Select this kit when the existing internal or attached antenna provides insufficient range or signal stability for the intended deployment area. Consider the 8 dBi gain specification relative to lower-gain alternatives if extended coverage is the primary objective. Evaluate the need for the included 6-foot cable length versus shorter or longer custom solutions based on routing constraints within the installation site.

Antennas RF Part Context

This component belongs to Pasternack's accessory and upgrade portfolio rather than their core RF test cable or connector lines. It serves as a specialized peripheral for the emerging Helium network ecosystem, focusing on consumer-grade IoT hardware optimization. Unlike precision microwave components, this kit prioritizes practical installation ease and broad frequency band support for sub-GHz communications.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should verify mechanical fitment and connector polarity compatibility with alternative third-party 900 MHz omnidirectional antennas if sourcing replacements from other manufacturers.

Antennas RF FAQ

What is the operating frequency range of the PEANKIT1008 antenna?

The antenna is designed for 900 MHz operations, which corresponds to the sub-GHz bands used by Helium Hotspots.

Does the kit include the cable or is it sold separately?

The kit includes a 6-foot low-loss cable pre-terminated with N Male and RP-SMA connectors as part of the complete assembly.
