PESMA1006-50PK

Antennas RF Overview

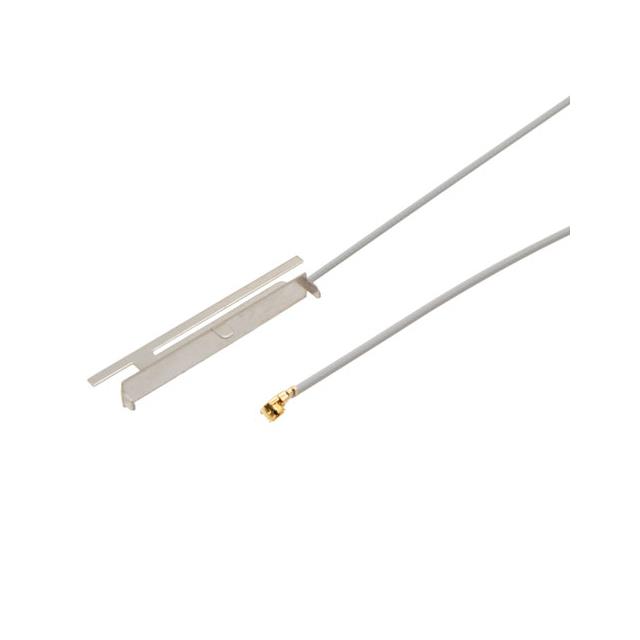

The Pasternack PESMA1006-50PK is a dual-band stamped metal antenna designed for embedded applications. It operates in the 2400–2500 MHz band with 3.15 dBi gain and the 5150–5825 MHz band with 6.52 dBi gain. The unit includes an IPEX connector interface and is packaged as a 50-piece set.

Antennas RF Feature Summary

• Dual-band operation supporting 2.4 GHz and 5 GHz wireless standards
• Stamped metal construction for durability and signal integrity
• Integrated IPEX connector for direct board attachment

Antennas RF Applications

• Access Point (AP) integration
• Router embedded installation
• Wireless device development

Antennas RF Procurement Notes

Verify that the specific order matches the -50PK suffix to ensure receipt of the 50-unit package rather than individual units. Confirm the IPEX connector type compatibility with the target PCB footprint before finalizing procurement.

Antennas RF Selection Notes

Select this model when high gain is required for the 5 GHz band alongside standard 2.4 GHz coverage. The stamped metal design offers a robust solution for space-constrained embedded environments requiring reliable RF performance.

Antennas RF Part Context

This part belongs to Pasternack's line of embedded antennas. It is specifically engineered for Wi-Fi and wireless communication devices where compact size and multi-band functionality are critical requirements for modern networking hardware.

Antennas RF Replacement Considerations

Check datasheets for alternative models offering similar gain profiles. Ensure any substitute supports both 2400-2500 MHz and 5150-5825 MHz bands with compatible IPEX interfaces.
