PEWA3403[0...1]MPa-V1EC2

Pressure Sensors Transducers Overview

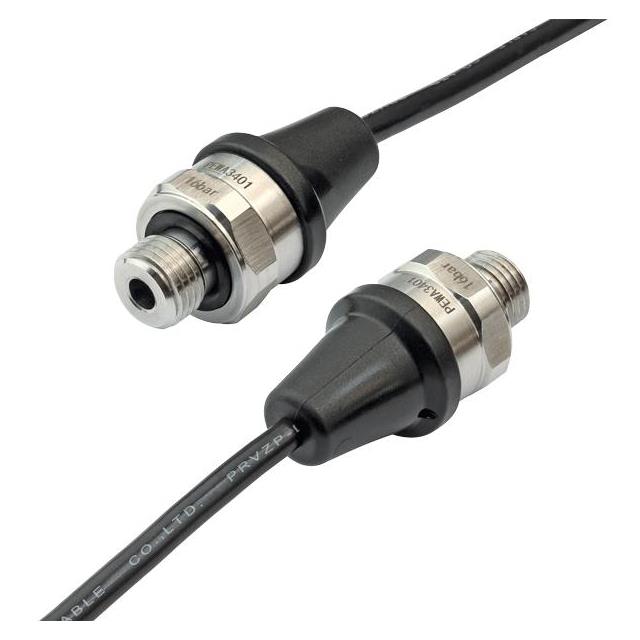

The PEWA3403[0...1]MPa-V1EC2 is a pressure transmitter from Angst+Pfister Sensors and Power AG. It utilizes micro-fusion technology for the pressure sensor element. The device features an analog output signal suitable for industrial instrumentation applications. The model designation indicates a measurement range of 0 to 1 MPa. The V1EC2 suffix specifies the electrical connection and output configuration details defined by the manufacturer's standard coding system.

Pressure Sensors Transducers Feature Summary

• Utilizes micro-fusion technology for the sensing element
• Compact design optimized for cost-effective integration
• Analog output signal for direct interface with control systems

Pressure Sensors Transducers Applications

• Industrial instrumentation
• Pneumatic device monitoring
• Pressure switch applications

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix codes against the official Angst+Pfister datasheet to ensure correct pinout and output type. Confirm process connection compatibility with the target medium. Check for any required calibration certificates or documentation upon delivery. Ensure environmental ratings match the installation site conditions.

Pressure Sensors Transducers Selection Notes

Select this model based on the required 0-1 MPa range and analog output preference. Consider the micro-fusion technology benefits for stability. Evaluate the physical dimensions for space constraints. Compare against other series like AG2 if digital interfaces are needed instead of analog signals.

Pressure Sensors Transducers Part Context

This component belongs to the PEWA3403 low-cost transmitter series. The series is designed for general industrial pressure monitoring tasks. Angst+Pfister offers various ranges and configurations within this family. The product line emphasizes simple design and reliable performance in diverse environments.

Pressure Sensors Transducers Replacement Considerations

Check for updated suffix versions from the manufacturer. Verify pin-to-pin compatibility with existing PCBs or connectors. Ensure the replacement part maintains the same pressure range and output characteristics.
