PEWAN062-20ELSF

Antennas RF Overview

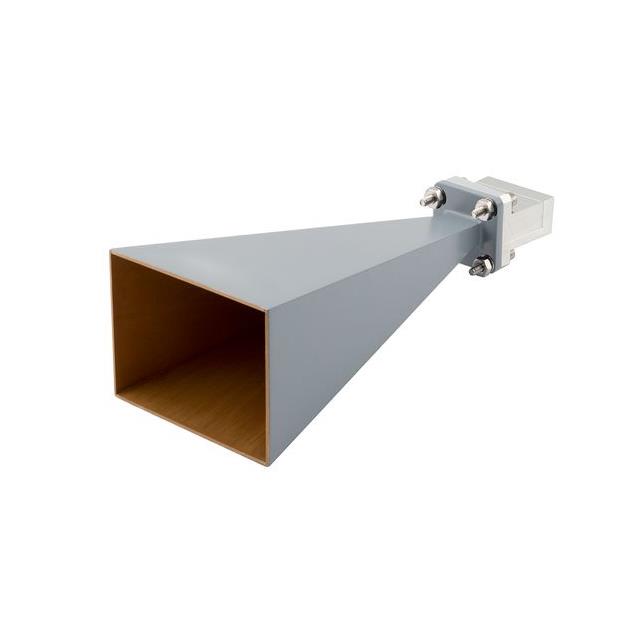

The PEWAN062-20ELSF is a WR-62 standard gain horn antenna manufactured by Pasternack. It operates within a frequency range of 12.4 GHz to 18 GHz, with a center frequency of 15.2 GHz. The component provides a typical gain of 20 dBi and features an end-launch SMA female connector for waveguide mounting. It exhibits a typical vertical beam width of 17.3 degrees.

Antennas RF Feature Summary

• Standard gain horn design optimized for the WR-62 waveguide band
• End-launch SMA female connector interface for direct integration
• RoHS compliant construction for environmental standards

Antennas RF Applications

• General purpose RF antenna applications in the 12.4–18 GHz range
• Waveguide system testing and measurement setups
• Microwave communication link implementations

Antennas RF Procurement Notes

Verify that the specific order matches the PEWAN062-20ELSF designation to ensure the correct SMA female connector type. Confirm RoHS compliance requirements align with project specifications. Check datasheet details for mechanical dimensions to ensure proper fit within the intended waveguide assembly before finalizing procurement.

Antennas RF Selection Notes

Select this model when a fixed 20 dBi gain is required for the WR-62 band. Ensure the application supports the 12.4–18 GHz frequency range. Verify that the SMA female interface is compatible with the mating cable or adapter. Consider the 17.3-degree vertical beam width for directional coverage needs.

Antennas RF Part Context

This component belongs to Pasternack's line of WR-62 standard gain horn antennas. It is designed for high-frequency microwave applications requiring precise radiation patterns. The series includes variants with different connector types, such as N female options, to suit various system integration requirements.

Antennas RF Replacement Considerations

The PEWAN062-20ELNF serves as a substitute option featuring an N female connector instead of SMA. Both models share identical WR-62 waveguide dimensions and 20 dBi gain characteristics. Verify connector compatibility when considering alternative interfaces.
