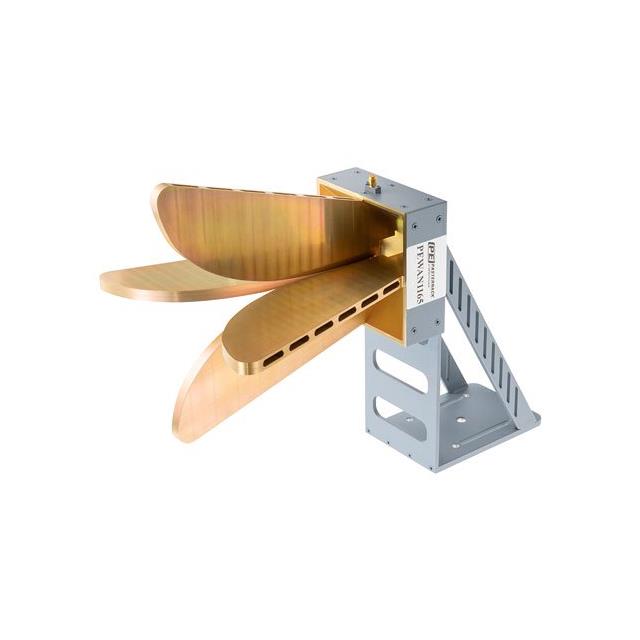

PEWAN1165

$7,452.12

Description：Broadband Horn Antenna, Dual Pol
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:de07ba1f88cf Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PEWAN1165 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is Broadband Horn Antenna, Dual Pol. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PEWAN1165

Description：Broadband Horn Antenna, Dual Pol
Series：-
Mfr：Pasternack
Package：Retail Package
RF Family/Standard：General ISM
Frequency Group：Wide Band
Frequency (Center/Band)：1.4GHz
Frequency Range：800MHz ~ 2GHz
Antenna Type：Horn
Number of Bands：1
VSWR：-
Return Loss：-
Gain：6dBi
Features：-
Termination：SMA Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：8.440" (214.37mm)
Applications：General Purpose
Power - Max：-

Antennas RF datasheet and documents for PEWAN1165

PEWAN1165

Antennas RF Overview

The PEWAN1165 is a broadband horn antenna manufactured by Pasternack Enterprises Inc. It operates within a frequency range of 0.8 GHz to 2 GHz and features dual polarization capabilities. The antenna provides a gain of 4 to 8.5 dB and utilizes an SMA female connector for interface connections. Designed for bracket mounting, the unit weighs 5.285 lbs. This component serves as a general-purpose RF antenna suitable for applications requiring broad bandwidth coverage in the specified frequency band.

Antennas RF Feature Summary

Dual polarization design for versatile signal reception
Broadband operation covering 0.8 GHz to 2 GHz
SMA female connector interface for standard integration

Antennas RF Applications

General purpose RF antenna systems
Wireless infrastructure testing
Broadband communication links

Antennas RF Procurement Notes

Verify the specific datasheet version and connector tolerance requirements before procurement. Confirm that the SMA female interface matches existing system cabling. Ensure the operating temperature range aligns with the intended deployment environment. Check for any specific mounting hardware requirements associated with the bracket mount design to ensure proper installation stability.

Antennas RF Selection Notes

Select this model when a broadband solution is required between 0.8 GHz and 2 GHz. The dual polarization feature supports diverse signal types. Consider the physical weight and bracket mounting style for structural compatibility. Compare gain specifications against link budget requirements to ensure adequate signal strength for the specific application distance and interference conditions.

Antennas RF Part Context

This part belongs to Pasternack's line of RF antennas, specifically focusing on broadband horn designs. The manufacturer offers various configurations for different frequency ranges and connector types. The PEWAN1165 represents a general-purpose option within their portfolio, targeting applications that require reliable performance across a wide frequency span without the need for complex tuning or multiple specialized units.
