PG2409

$548.10

Description：SENSOR 14.5PSI 1/2" .02A
Series：-
Mfr：ifm efector, inc.
Package：Box

SKU:ee38344c4351 Category: Pressure Sensors, Transducers Brand: ifm efector, inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PG2409 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SENSOR 14.5PSI 1/2" .02A. Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for PG2409

Description：SENSOR 14.5PSI 1/2" .02A
Series：-
Mfr：ifm efector, inc.
Package：Box
Applications：-
Pressure Type：Vacuum
Operating Pressure：-14.5PSI ~ 14.5PSI (-100kPa ~ 100kPa)
Output Type：Analog Current, NPN/PNP- NC/NO
Output：4 mA ~ 20 mA
Accuracy：±0.5%
Voltage - Supply：18V ~ 32V
Port Size：Male - 1/2" (12.7mm) BSPP
Port Style：Threaded
Features：-
Termination Style：M12, 4 Pin
Maximum Pressure：435.11PSI (3000kPa)
Operating Temperature：-20°C ~ 80°C
Mounting Type：-
Package / Case：Module Box with Display
Supplier Device Package：-
Grade：-
Qualification：-

Pressure Sensors Transducers datasheet and documents for PG2409

PG2409

Pressure Sensors Transducers Overview

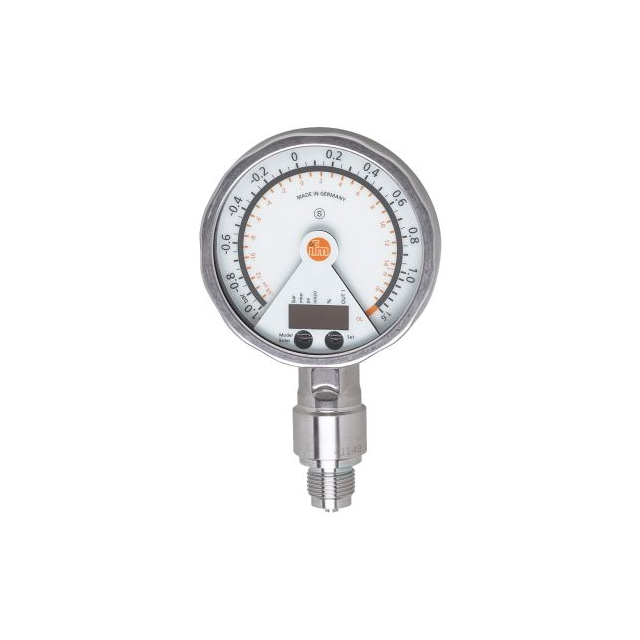

The PG2409 is an electronic pressure sensor featuring an integrated analogue display for simultaneous monitoring, transmission, and visualization of system pressures. It supports a process range of -1 to 1 bar and provides dual outputs: a switching output (DC PNP/NPN) and a scalable analogue output (4-20 mA). Designed for industrial applications, it ensures precise monitoring of liquids and gases while combining robust construction with user-friendly interface capabilities.

Pressure Sensors Transducers Feature Summary

Integrates analogue display for real-time local pressure visualization
Provides dual output configuration including switching and scalable analogue signals
Engineered for precise monitoring of both liquid and gas media in industrial environments

Pressure Sensors Transducers Applications

Industrial system pressure monitoring
Process control applications requiring simultaneous data transmission and display
Monitoring of liquid and gas systems

Pressure Sensors Transducers Procurement Notes

Verify the specific output configuration requirements against the datasheet, as the model supports both PNP/NPN switching and 4-20mA analogue outputs. Confirm the process pressure range matches the application needs (-1 to 1 bar). Ensure compatibility with existing control systems regarding signal types. Check for any required accessories or mounting hardware specified in official documentation before ordering.

Pressure Sensors Transducers Selection Notes

Select this component when both local visual indication and remote signal transmission are required. The dual-output capability allows integration into diverse control architectures. Consider the specific media type (liquid or gas) and pressure range constraints. Verify environmental conditions and connection requirements against the manufacturer's specifications to ensure reliable operation.

Pressure Sensors Transducers Part Context

This part belongs to ifm's pressure sensor portfolio, designed for industrial automation. ifm efector specializes in sensors and controls that enhance equipment effectiveness through real-time data access. The company focuses on providing connectivity and condition monitoring solutions for various manufacturing sectors.
