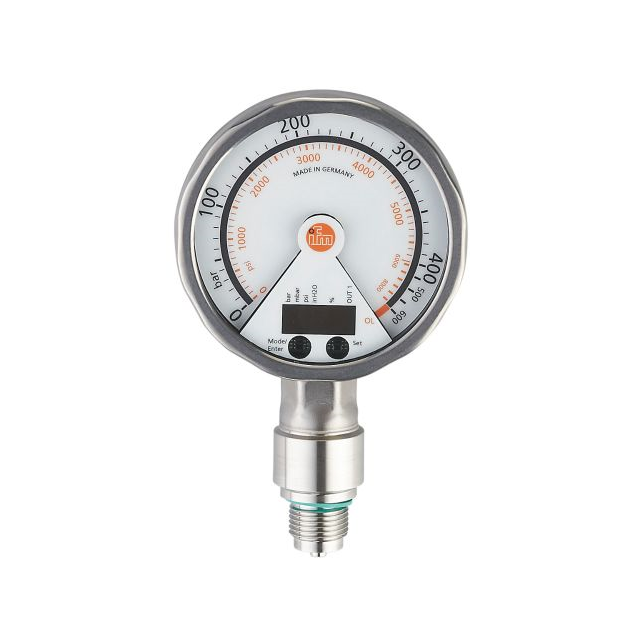

PG2451

$533.25

Description：SENSOR 3620PSI 1/2" .02A
Series：-
Mfr：ifm efector, inc.
Package：Box

SKU:e994c0203a8a Category: Pressure Sensors, Transducers Brand: ifm efector, inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PG2451 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SENSOR 3620PSI 1/2" .02A. Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for PG2451

Description：SENSOR 3620PSI 1/2" .02A
Series：-
Mfr：ifm efector, inc.
Package：Box
Applications：-
Pressure Type：-
Operating Pressure：3625.94PSI (25000kPa)
Output Type：Analog Current, NPN/PNP- NC/NO
Output：4 mA ~ 20 mA
Accuracy：±0.6%
Voltage - Supply：18V ~ 32V
Port Size：Male - 1/2" (12.7mm) BSPP
Port Style：Threaded
Features：-
Termination Style：M12, 4 Pin
Maximum Pressure：14500PSI (100000kPa)
Operating Temperature：-20°C ~ 80°C
Mounting Type：-
Package / Case：Module Box with Display
Supplier Device Package：-
Grade：-
Qualification：-

Pressure Sensors Transducers datasheet and documents for PG2451

PG2451

Pressure Sensors Transducers Overview

The PG2451 is a pressure sensor manufactured by ifm efector, inc. designed for measuring gas and liquid media. It features a relative pressure reading capability with a maximum pressure rating of 250 bar (3625.94 PSI or 25000 kPa). The device operates on an 18 to 32 Vdc supply voltage and provides a 4 to 20 mA analog output signal. It includes a male 1/2 inch (12.7mm) BSPP thread connection. The unit supports IP67 and IP69K ingress protection standards and functions within a minimum operating temperature of -20°C.

Pressure Sensors Transducers Feature Summary

Measures relative pressure for gas and liquid media
Provides 4 to 20 mA analog output signal
Features IP67 and IP69K ingress protection ratings
Includes integrated display module

Pressure Sensors Transducers Applications

Industrial process monitoring
Mobile equipment hydraulics
Fluid power systems
Gas line pressure tracking

Pressure Sensors Transducers Procurement Notes

Verify the specific thread configuration and output signal requirements against the application design before ordering. Confirm that the 18 to 32 Vdc supply range aligns with the existing control system infrastructure. Ensure the 250 bar maximum pressure limit exceeds the peak operational pressures in the target environment. Check for any necessary Declaration of Decontamination forms if returning process sensors for warranty evaluation.

Pressure Sensors Transducers Selection Notes

Select this model when high-pressure measurement up to 250 bar is required for both gases and liquids. The 4 to 20 mA output ensures compatibility with standard industrial PLCs and controllers. The robust IP69K rating makes it suitable for applications requiring frequent high-pressure washdowns. Consider the physical size and 1/2 inch BSPP connection for space constraints and piping compatibility.

Pressure Sensors Transducers Part Context

ifm efector, inc. specializes in industrial sensors and controls to improve Overall Equipment Effectiveness. The company serves customers in assembly, robotics, automotive, and material handling sectors. Their product portfolio includes pressure, flow, temperature, and vision sensors. The PG2451 falls under their process sensor category, supporting predictive maintenance and machine safety.
