PG2452

Pressure Sensors Transducers Overview

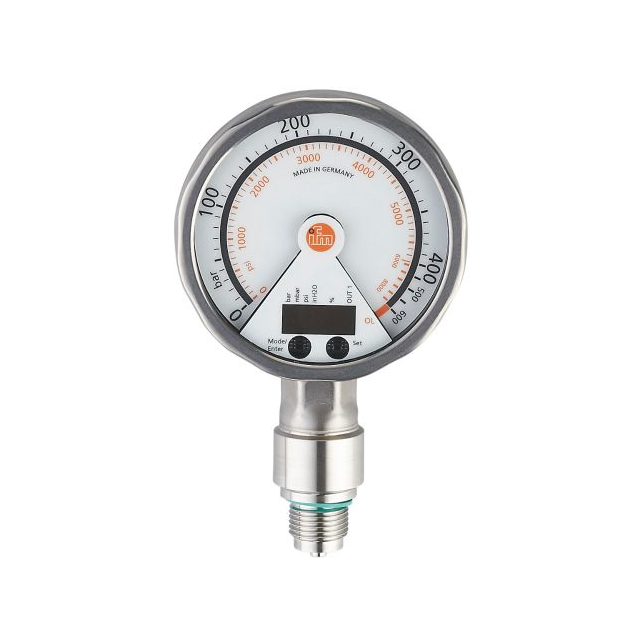

The PG2452 is a relative pressure sensor manufactured by ifm efector, Inc., designed for industrial automation environments. It integrates an analog display, pressure switch, and transmitter into a single unit to facilitate monitoring and control. The device features a male 1/2 inch (12.7mm) BSPP process connection for secure installation. Electrical output is provided via a 4 mA to 20 mA signal module, ensuring compatibility with standard industrial control systems. The maximum pressure rating is specified as 1450.38 PSI (10000 kPa). A key design element is the rotatable display equipped with an LED bar graph, which enhances readability from a distance and allows for flexible viewing angles during setup and operation.

Pressure Sensors Transducers Feature Summary

• Integrates pressure switch and transmitter functions within a single housing
• Features a rotatable analog display with LED bar graph for enhanced visibility
• Provides 4 mA to 20 mA analog output signal for system integration

Pressure Sensors Transducers Applications

• Industrial machine condition monitoring
• Process control in manufacturing environments
• Predictive maintenance systems requiring real-time pressure data

Pressure Sensors Transducers Procurement Notes

Verify that the specific order suffix matches the required electrical output configuration and process connection type. Confirm the maximum pressure rating aligns with the application's peak operating conditions. Ensure the voltage supply requirements are compatible with the existing control cabinet infrastructure before finalizing the purchase order.

Pressure Sensors Transducers Selection Notes

Select this model when a combined switching and transmitting function is required to reduce component count. The integrated display simplifies commissioning and troubleshooting without additional tools. Consider the rotatable faceplate feature if space constraints or viewing angles are critical factors in the installation location.

Pressure Sensors Transducers Part Context

This component belongs to ifm's portfolio of industrial sensors aimed at improving Overall Equipment Effectiveness. The PG2452 series supports IIoT connectivity initiatives by providing reliable data acquisition for process optimization. It is part of a broader ecosystem of sensors and controls designed to increase access to real-time production data for manufacturers.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mounting hardware and signal processing units when considering alternative models.
