PG2454

Pressure Sensors Transducers Overview

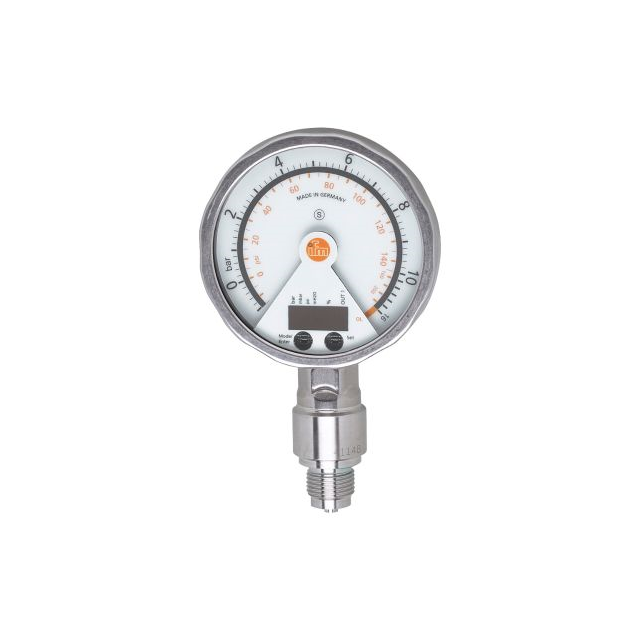

The ifm efector PG2454 is an electronic pressure sensor designed for measuring relative pressure in industrial plants. It features a G 1/2 process connection and an M12, 4-pin terminal interface. The device operates within a range of -1 to 10 bar (-14.5 PSI to 145.04 PSI) with an accuracy of ±0.5%. Output options include analog current (4 mA to 20 mA) and digital signals via NPN/PNP configurations. The unit integrates an analogue display with an LED bar graph for switch status indication.

Pressure Sensors Transducers Feature Summary

• Combines pressure monitoring, switching, and transmission functions in a single unit
• Features a rotatable analogue display with LED bar graph for enhanced readability
• Supports both analog current output and configurable digital switching outputs

Pressure Sensors Transducers Applications

• Pressure monitoring in food and beverage processing systems
• Level measurement applications requiring relative pressure data
• Industrial plant instrumentation for process control

Pressure Sensors Transducers Procurement Notes

Verify the specific ordering suffix required for your application, as variations may exist regarding output type or connector configuration. Confirm that the G 1/2 thread size matches your existing piping infrastructure. Ensure the supply voltage aligns with the 24V DC requirement specified for standard operation. Check RoHS compliance documentation if environmental regulations apply to your facility. Validate the operating pressure range against maximum system peaks to prevent sensor damage.

Pressure Sensors Transducers Selection Notes

Select this model when a combined display and transmitter solution is needed for easy visual inspection. The M12 connector facilitates standardized wiring in automation environments. Consider the ±0.5% accuracy rating for general process monitoring tasks. The dual output capability allows flexibility in integrating with different PLC or controller types. Ensure the stainless steel construction meets hygiene standards if used in sanitary applications.

Pressure Sensors Transducers Part Context

This component belongs to ifm's portfolio of industrial sensors aimed at improving Overall Equipment Effectiveness. The PG2454 represents a specialized solution for pressure monitoring where local visibility and remote data transmission are both critical. It supports IIoT connectivity goals by providing reliable process data for predictive maintenance strategies.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mounting hardware and electrical interfaces before considering alternative models from other manufacturers.
