PG2455 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SENSOR 58PSI 1/2" .02A. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PG2455
- Description：SENSOR 58PSI 1/2" .02A
- Series：-
- Mfr：ifm efector, inc.
- Package：Box
- Applications：-
- Pressure Type：Vacuum
- Operating Pressure：-14.5PSI ~ 58PSI (-100kPa ~ 400kPa)
- Output Type：Analog Current, NPN/PNP- NC/NO
- Output：4 mA ~ 20 mA
- Accuracy：±0.5%
- Voltage - Supply：18V ~ 32V
- Port Size：Male - 1/2" (12.7mm) BSPP
- Port Style：Threaded
- Features：-
- Termination Style：M12, 4 Pin
- Maximum Pressure：1450.38PSI (10000kPa)
- Operating Temperature：-20°C ~ 80°C
- Mounting Type：-
- Package / Case：Module Box with Display
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PG2455
Pressure Sensors Transducers Overview

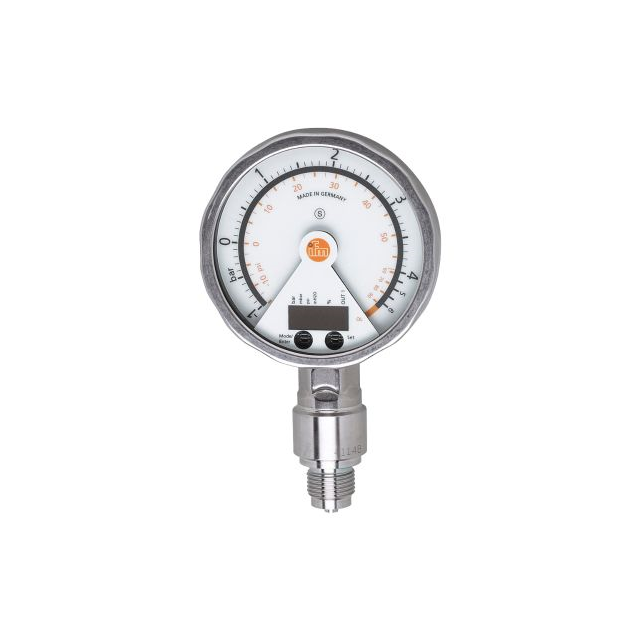

The PG2455 is an electronic pressure sensor manufactured by ifm efector, inc. It features a measuring range of -1 to 4 bar (-100 kPa to 400 kPa) and provides a 4 mA to 20 mA analog output signal. The device includes a 4-digit alphanumeric display with an LED bar for status indication. It utilizes a male 1/2 inch (12.7 mm) BSPP thread connection. The unit operates within a temperature range of -20°C to 80°C and is housed in a module box configuration.
Pressure Sensors Transducers Feature Summary
- Combines pressure switch and transmitter functions with an integrated analog display
- Features a rotatable display for improved readability from various angles
- Includes LED bar indicators for intuitive status monitoring
Pressure Sensors Transducers Applications
- Industrial process control systems requiring pressure monitoring
- Hydraulic and pneumatic machinery integration
- Factory automation equipment with analog signal requirements
Pressure Sensors Transducers Procurement Notes
Verify the specific thread type and electrical connection requirements against the application schematic before ordering. Confirm that the operating pressure range aligns with system maximums. Ensure environmental conditions fall within the specified temperature limits. Check for any required certifications or compliance standards relevant to the installation site.
Pressure Sensors Transducers Selection Notes
Select this model when an integrated display and analog output are required for pressure monitoring. Consider the BSPP thread size compatibility with existing piping systems. Evaluate the need for a rotatable display based on installation orientation. Compare against other ifm models if digital communication protocols like IO-Link are preferred over analog signals.
Pressure Sensors Transducers Part Context
This component belongs to ifm's electronic pressure sensor line, designed for industrial automation. It serves as a hybrid device integrating sensing, switching, and transmission capabilities. The product supports manufacturers in achieving better process control through real-time data visualization and standard analog signaling.
Pressure Sensors Transducers Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mounting hardware and signal conditioning circuits when considering alternative sensors.
