PG2456 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SENSOR 36PSI 1/2" .02A. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PG2456
- Description：SENSOR 36PSI 1/2" .02A
- Series：-
- Mfr：ifm efector, inc.
- Package：Box
- Applications：-
- Pressure Type：-
- Operating Pressure：-1.8PSI ~ 36PSI (-12.5kPa ~ 250kPa)
- Output Type：Analog Current, NPN/PNP- NC/NO
- Output：4 mA ~ 20 mA
- Accuracy：±0.5%
- Voltage - Supply：18V ~ 32V
- Port Size：Male - 1/2" (12.7mm) BSPP
- Port Style：Threaded
- Features：-
- Termination Style：M12, 4 Pin
- Maximum Pressure：725.19PSI (5000kPa)
- Operating Temperature：-20°C ~ 80°C
- Mounting Type：-
- Package / Case：Module Box with Display
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PG2456
Pressure Sensors Transducers Overview

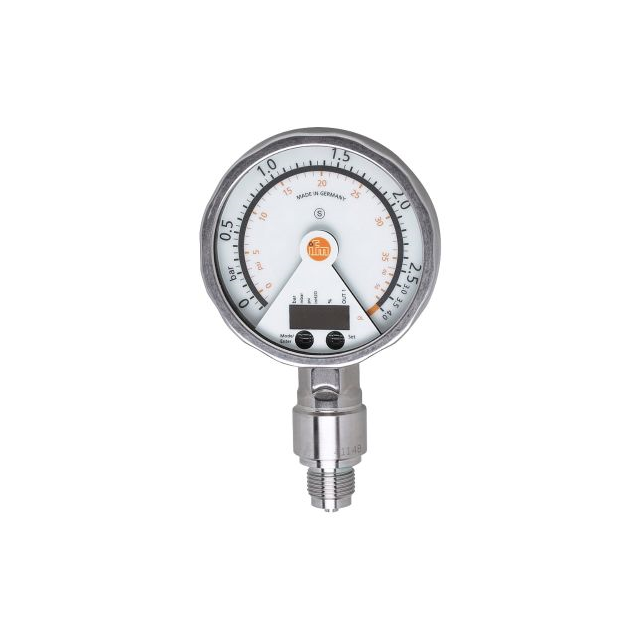

The PG2456 is an industrial pressure sensor manufactured by ifm efector, inc. It features a male 1/2 inch (12.7mm) BSPP threaded port for secure installation. The device operates on an 18 to 32 VDC supply voltage and provides a 4 to 20 mA analog output signal. It supports a maximum operating pressure of 2.5 bar (36 PSI). The unit integrates an analog display with an LED bar graph for local monitoring. It carries IP67 and IP69K ingress protection ratings for durability in harsh environments.
Pressure Sensors Transducers Feature Summary
- Integrates pressure sensing, switching, and transmission functions within a single compact module.
- Features a rotatable analog display with an LED bar graph for enhanced visibility from a distance.
- Constructed with robust materials suitable for measuring gas and liquid pressures.
- Includes high ingress protection ratings to withstand demanding industrial conditions.
Pressure Sensors Transducers Applications
- Industrial process control systems requiring precise pressure monitoring
- Hydraulic and pneumatic machinery diagnostics
- Fluid handling equipment in food and beverage production
- Mobile equipment hydraulic circuit monitoring
Pressure Sensors Transducers Procurement Notes
Verify the specific thread type and pressure range requirements against the application needs before ordering. Confirm that the 4 to 20 mA output signal matches the receiving controller's input specifications. Ensure the 1/2 inch BSPP port size aligns with existing piping infrastructure. Check environmental ratings against potential exposure to high-pressure washdowns or extreme temperatures.
Pressure Sensors Transducers Selection Notes
Select this model when a combined display and transmitter solution is required for immediate visual feedback alongside data transmission. Consider the IP69K rating for applications involving frequent high-pressure cleaning. Evaluate the 2.5 bar pressure limit to ensure it exceeds the system's maximum operating pressure with adequate safety margin. Verify compatibility with the 18 to 32 VDC power supply available at the installation site.
Pressure Sensors Transducers Part Context
This component belongs to ifm's portfolio of industrial sensors designed to improve Overall Equipment Effectiveness. The manufacturer specializes in providing connectivity and condition monitoring solutions for automation. The PG2456 represents a specialized tool for pressure measurement, complementing their broader range of flow, temperature, and vision sensors used in manufacturing and mobile equipment sectors.
Pressure Sensors Transducers Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should consult official distributor catalogs or contact ifm technical support directly for cross-reference information regarding compatible alternatives or updated series replacements.
