PG2489 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SENSOR 1.45PSI 1/2" .02A. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PG2489
- Description：SENSOR 1.45PSI 1/2" .02A
- Series：-
- Mfr：ifm efector, inc.
- Package：Box
- Applications：-
- Pressure Type：-
- Operating Pressure：-0.07PSI ~ 1.45PSI (-0.5kPa ~ 10kPa)
- Output Type：Analog Current, NPN/PNP- NC/NO
- Output：4 mA ~ 20 mA
- Accuracy：±0.6%
- Voltage - Supply：18V ~ 32V
- Port Size：Male - 1/2" (12.7mm) BSPP
- Port Style：Threaded
- Features：-
- Termination Style：M12, 4 Pin
- Maximum Pressure：435.11PSI (3000kPa)
- Operating Temperature：-20°C ~ 80°C
- Mounting Type：-
- Package / Case：Module Box with Display
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PG2489
Pressure Sensors Transducers Overview

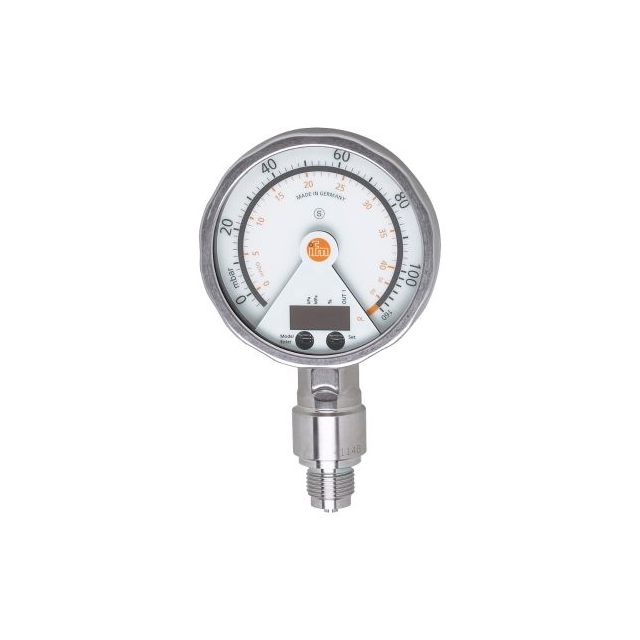

The PG2489 is a relative pressure sensor manufactured by ifm efector, inc. designed for monitoring liquids and gases. It features an analogue display with a dial interface for direct reading. The device supports a measuring range of -5100 mbar and operates within a medium temperature range of -25 to 80 °C. It utilizes a 1/2" connection interface and includes a .02A output specification.
Pressure Sensors Transducers Feature Summary
- Provides direct visual indication of pressure levels via an integrated analogue dial display.
Pressure Sensors Transducers Applications
- Monitoring relative pressure in liquid systems
- Monitoring relative pressure in gas systems
Pressure Sensors Transducers Procurement Notes
Verify the specific dial color configuration (white or black) and cable assembly details against project requirements before ordering. Confirm that the 1/2" port size matches the installation manifold. Ensure the operating medium temperature remains within the specified -25 to 80 °C range to maintain sensor integrity and accuracy during deployment.
Pressure Sensors Transducers Selection Notes
Select this model when a local visual pressure readout is required without additional electronic interfaces. The fixed measuring range of -5100 mbar suits applications where broad low-pressure monitoring is sufficient. Consider the analogue nature of the output if digital data logging or remote monitoring capabilities are not necessary for the specific machine setup.
Pressure Sensors Transducers Part Context
This component belongs to the industrial pressure sensor category produced by ifm efector, inc., a subsidiary of ifm electronic gmbh. The manufacturer specializes in sensors and controls for automation, serving industries such as automotive, material handling, and food production. The PG2489 represents a standard solution for basic pressure monitoring tasks requiring robust mechanical construction.
Pressure Sensors Transducers Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mounting hardware and process connections when considering alternative models from other manufacturers.
