PG2789

Pressure Sensors Transducers Overview

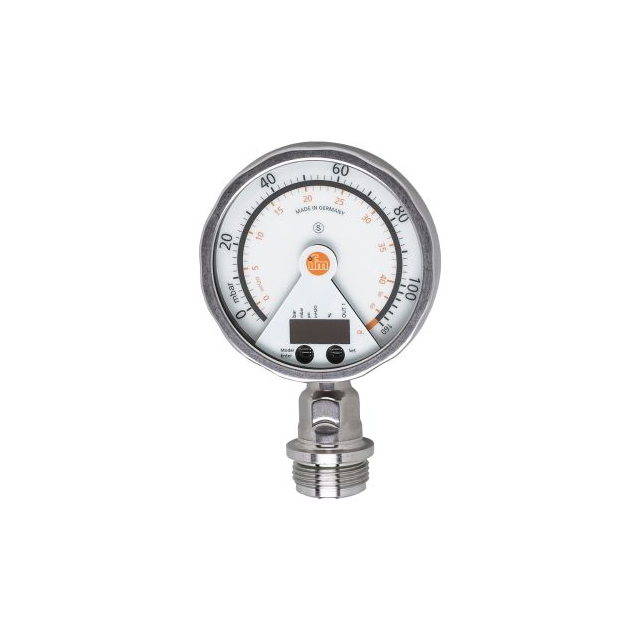

The PG2789 is a flush pressure sensor manufactured by ifm efector, inc., designed for hygienic applications. It features an analogue gauge and digital display. The device operates within a pressure range of -0.5 kPa to 10 kPa (-0.07 PSI to 1.45 PSI). It provides a 4 mA to 20 mA analog output signal and includes switching outputs. The process connection is a male 1 inch (25.4 mm) BSPP thread. Zero-point calibration can be performed via parameter [COF], allowing adjustment between -5% and 5% of the measuring range's final value.

Pressure Sensors Transducers Feature Summary

• Integrates both analogue gauge and digital display for immediate visual monitoring
• Designed specifically for hygienic industrial applications
• Supports zero-point calibration through parameter [COF] for measurement accuracy

Pressure Sensors Transducers Applications

• Hygienic industrial process monitoring
• Pressure measurement in sanitary environments
• Applications requiring combined analogue and digital readouts

Pressure Sensors Transducers Procurement Notes

Verify the specific process connection type and pressure range requirements against the application needs. Confirm that the 1 inch BSPP thread matches the system interface. Ensure the -0.5 kPa to 10 kPa range covers the operational pressures. Check compatibility with the 4-20 mA signal loop and switching output configurations required by the control system.

Pressure Sensors Transducers Selection Notes

Select this model when hygienic design standards are mandatory. The combination of gauge and display aids in local troubleshooting without external tools. The flush design prevents contamination buildup. Verify that the low-pressure range suits the specific fluid or gas being monitored. Ensure the electrical connections support the 4-20 mA output requirement.

Pressure Sensors Transducers Part Context

This component belongs to ifm's pressure sensors line, targeting industries requiring high hygiene standards. It complements other ifm sensors by providing precise low-range pressure data with integrated visualization. The product supports predictive maintenance and process control in sensitive manufacturing environments.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official ifm channels for cross-reference information.

Pressure Sensors Transducers FAQ

How is zero-point calibration performed on the PG2789?

Zero-point calibration is performed by selecting parameter [COF] and setting a value between -5% and 5% of the measuring range's final value.

What is the process connection specification for this sensor?

The PG2789 features a male 1 inch (25.4 mm) BSPP thread for process connection.
