PG2796

$704.25

Description：SENSOR 36PSI 1" .02A
Series：-
Mfr：ifm efector, inc.
Package：Box

SKU:ddefed8fea60 Category: Pressure Sensors, Transducers Brand: ifm efector, inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PG2796 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SENSOR 36PSI 1" .02A. Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for PG2796

Description：SENSOR 36PSI 1" .02A
Series：-
Mfr：ifm efector, inc.
Package：Box
Applications：-
Pressure Type：-
Operating Pressure：-1.8PSI ~ 36PSI (-12.5kPa ~ 250kPa)
Output Type：Analog Current, NPN/PNP- NC/NO
Output：4 mA ~ 20 mA
Accuracy：±0.2%
Voltage - Supply：18V ~ 32V
Port Size：Male - 1" (25.4mm) BSPP
Port Style：Threaded
Features：-
Termination Style：M12, 4 Pin
Maximum Pressure：725.19PSI (5000kPa)
Operating Temperature：-25°C ~ 80°C
Mounting Type：-
Package / Case：Module Box with Display
Supplier Device Package：-
Grade：-
Qualification：-

Pressure Sensors Transducers datasheet and documents for PG2796

PG2796

Pressure Sensors Transducers Overview

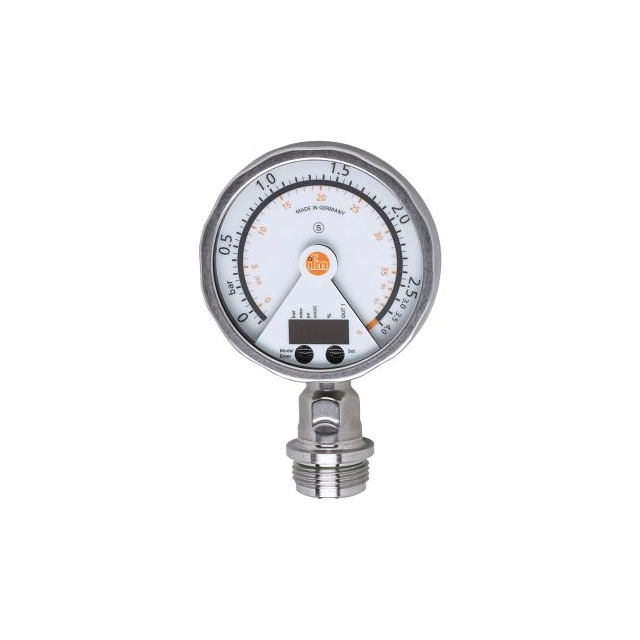

The PG2796 is a flush process pressure sensor integrating an analog display, pressure switch, and transmitter in a single unit. It features a measuring range of -1.8 to 36 psi (-12.5 kPa to 250 kPa) with an accuracy of ±0.2%. The device provides a 4 mA to 20 mA analog current output and includes one NPN/PNP switching output (NC/NO). Operating voltage specifications are present in official documentation.

Pressure Sensors Transducers Feature Summary

Combines pressure sensing, switching, and analog transmission functions within a single housing
Features a built-in analog display for local visual monitoring
Designed with a flush process connection suitable for Clean-in-Place (CIP) and Sterilize-in-Place (SIP) applications

Pressure Sensors Transducers Applications

Food and beverage processing systems
Industrial process control environments
Measurement of viscous media
Applications requiring CIP and SIP compatibility

Pressure Sensors Transducers Procurement Notes

Verify the specific ordering suffix against the manufacturer's datasheet to ensure correct output type and connection configuration. Confirm that the required pressure range and electrical interface match the system design. Check for any specific environmental ratings or material certifications required for sanitary applications. Ensure the flush mounting style aligns with the existing process piping infrastructure.

Pressure Sensors Transducers Selection Notes

Select this model when space constraints require a combined sensor and display solution. It is appropriate for processes needing both continuous analog monitoring and discrete switching signals. Consider the flush design for hygiene-critical industries where crevice-free surfaces are mandatory. Verify compatibility with the target medium's viscosity and chemical properties before integration.

Pressure Sensors Transducers Part Context

ifm efector manufactures industrial sensors and controls to improve Overall Equipment Effectiveness. The PG2796 belongs to their pressure sensor portfolio, designed for automation and process industries. The company emphasizes real-time data access and machine safety through integrated sensor technology.
