PG2799

$723.60

Description：SENSOR 14.5PSI 1" .02A
Series：-
Mfr：ifm efector, inc.
Package：Box

SKU:69e2125fd3ba Category: Pressure Sensors, Transducers Brand: ifm efector, inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PG2799 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SENSOR 14.5PSI 1" .02A. Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for PG2799

Description：SENSOR 14.5PSI 1" .02A
Series：-
Mfr：ifm efector, inc.
Package：Box
Applications：-
Pressure Type：Vacuum
Operating Pressure：-14.5PSI ~ 14.5PSI (-100kPa ~ 100kPa)
Output Type：Analog Current, NPN/PNP- NC/NO
Output：4 mA ~ 20 mA
Accuracy：±0.2%
Voltage - Supply：18V ~ 32V
Port Size：Male - 1" (25.4mm) BSPP
Port Style：Threaded
Features：-
Termination Style：M12, 4 Pin
Maximum Pressure：435.11PSI (3000kPa)
Operating Temperature：-25°C ~ 80°C
Mounting Type：-
Package / Case：Module Box with Display
Supplier Device Package：-
Grade：-
Qualification：-

Pressure Sensors Transducers datasheet and documents for PG2799

PG2799

Pressure Sensors Transducers Overview

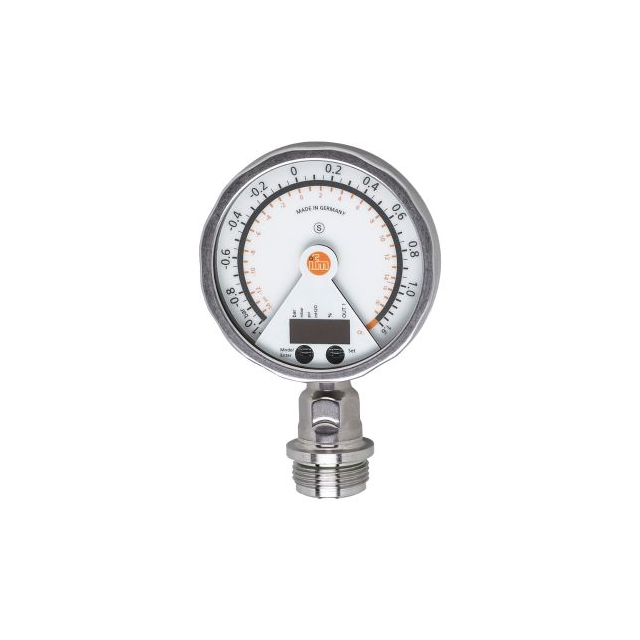

The PG2799 is a flush-mounted pressure sensor manufactured by ifm efector, inc. It integrates a pressure transmitter, pressure switch, and analogue display into a single unit. The device features a measuring range of -14.5 to 14.5 psi (-100 kPa to 100 kPa) with a 4-20 mA output signal. It includes switching outputs for process control and an LED bar graph display. The sensor utilizes a BSPP 1-inch (25.4 mm) thread connection.

Pressure Sensors Transducers Feature Summary

Integrates pressure transmission, switching, and visual indication in one housing
Features a rotatable analogue display with LED bar graph for remote readability
Flush-mount design suitable for space-constrained industrial installations

Pressure Sensors Transducers Applications

Industrial hydraulic and pneumatic system monitoring
Process control automation requiring combined measurement and switching
Mobile equipment pressure management systems

Pressure Sensors Transducers Procurement Notes

Verify the specific process connection type and media compatibility before procurement. Confirm that the required measuring range and electrical output specifications match the application needs. Ensure the flush-mount installation requirements are met within the target machinery design.

Pressure Sensors Transducers Selection Notes

Select this model when a combined solution for analog measurement, digital switching, and local visual indication is required. The integrated design reduces wiring complexity compared to separate components. Consider the flush-mount form factor for applications where protruding sensors may interfere with other machinery parts or cleaning processes.

Pressure Sensors Transducers Part Context

ifm efector, inc. specializes in industrial sensors and controls to improve Overall Equipment Effectiveness. The company provides solutions for monitoring pressure, flow, temperature, and vibration. Their products support predictive maintenance and machine safety through real-time data access and IO-Link connectivity.
