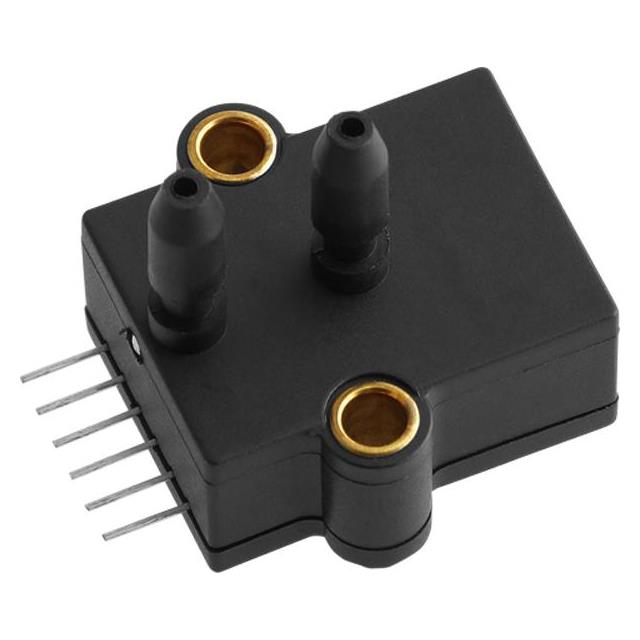

PHPSU-4502-030P-D-SP is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Angst+Pfister Sensors and Power AG. Its product description is Sensor 30PSID 0.19" .09V. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PHPSU-4502-030P-D-SP
- Description：Sensor 30PSID 0.19" .09V
- Series：PHPSU-4502
- Mfr：Angst+Pfister Sensors and Power AG
- Package：Bulk
- Applications：Board Mount
- Pressure Type：Differential
- Operating Pressure：30PSI (206.84kPa)
- Output Type：Wheatstone Bridge
- Output：0 mV ~ 90 mV (12V)
- Accuracy：±0.5%
- Voltage - Supply：12V ~ 20V
- Port Size：Male - 0.19" (4.8mm) Tube, Dual
- Port Style：Barbed
- Features：Temperature Compensated
- Termination Style：PC Pin
- Maximum Pressure：90PSI (620.53kPa)
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Through Hole
- Package / Case：6-SIP Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PHPSU-4502-030P-D-SP
Pressure Sensors Transducers Overview
The PHPSU-4502-030P-D-SP is a pressure transducer from the Angst+Pfister PHPSU-4502 series, designed for constant voltage excitation. It supports pressure ranges from 4 inches of water column to 150 psi (10 mbar up to 10 bar). The device provides a stable output signal with calibrated offset and span across a wide temperature range of 0 to 70°C. This component is electrically compatible with SCX series sensors regarding pinning and footprint.
Pressure Sensors Transducers Feature Summary
- Designed for constant voltage excitation applications
- Provides stable output signal with calibrated offset and span
- Operates within a wide temperature range of 0 to 70°C
- Electrically compatible with SCX series sensors in pinning and footprint
Pressure Sensors Transducers Applications
- Industrial OEM markets requiring stable pressure measurement
- Medical OEM applications needing reliable sensor performance
- Systems utilizing constant voltage excitation sources
Pressure Sensors Transducers Procurement Notes
Verify the specific part number PHPSU-4502-030P-D-SP against official Angst+Pfister documentation to ensure correct configuration. Confirm that the required pressure range and electrical compatibility align with system design requirements before procurement.
Pressure Sensors Transducers Selection Notes
Select this model when constant voltage excitation is specified and compatibility with SCX series footprints is required. Ensure the application environment falls within the 0 to 70°C operating temperature range and matches the desired pressure span.
Pressure Sensors Transducers Part Context
This component belongs to the PHPSU-4502 pressure sensor series manufactured by Angst+Pfister Sensors and Power AG. The series is engineered for industrial and medical OEM markets, offering specialized technical components for precise measurement tasks.
Pressure Sensors Transducers Replacement Considerations
The PHPSU-4502 series is noted as electrically compatible with SCX series sensors regarding pinning and footprint. Verify specific part number substitutions using official manufacturer cross-reference data.
