PI2794 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SENSOR 145.0PSI M12. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PI2794
- Description：SENSOR 145.0PSI M12
- Series：-
- Mfr：ifm efector, inc.
- Package：Box
- Applications：-
- Pressure Type：Vacuum
- Operating Pressure：14.5PSI ~ 145.0PSI (100kPa ~ 1000kPa)
- Output Type：NPN/PNP- NC/NO
- Output：-
- Accuracy：±0.2%
- Voltage - Supply：18V ~ 32V
- Port Size：Male - M12 x 1.0
- Port Style：Threaded
- Features：-
- Termination Style：Connector
- Maximum Pressure：2175.57PSI (15000kPa)
- Operating Temperature：-25°C ~ 80°C
- Mounting Type：-
- Package / Case：Cylinder, Threaded
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PI2794
Pressure Sensors Transducers Overview

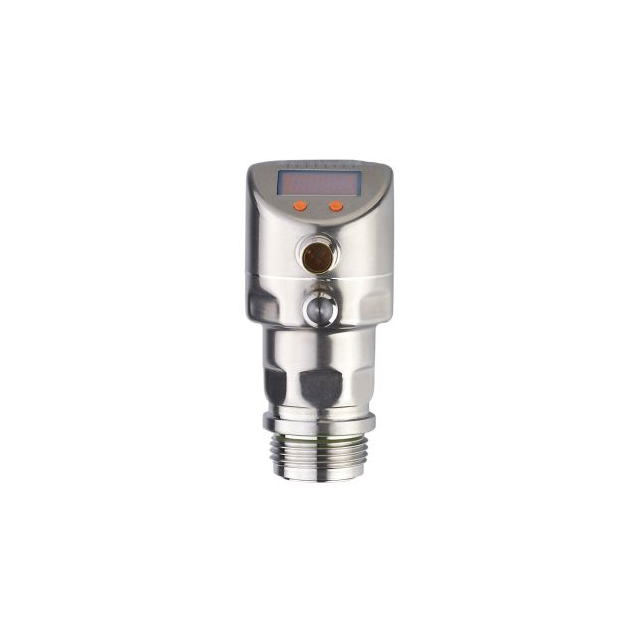

The PI2794 is a flush-mounted pressure sensor designed for hygienic environments. It features a robust stainless steel housing suitable for food and beverage applications. The device measures relative pressure with a range of -1 to 10 bar (-14.5 to 145 psi). It includes an integrated digital display and supports G1 thread connection. Output options include configurable analog and switch signals, operable via 2-wire or 3-wire connections.
Pressure Sensors Transducers Feature Summary
- Hygienic flush design resistant to high-pressure cleaning agents
- Integrated digital display for local monitoring
- Configurable analog and switch output signals
- IO-Link capability for parameter setting
Pressure Sensors Transducers Applications
- Food and beverage processing systems
- Hygienic industrial fluid control
- Viscous media monitoring
- Liquids and gases with suspended particles
Pressure Sensors Transducers Procurement Notes
Verify the specific ordering suffix to confirm process connection type, cable length, and IO-Link version. Ensure the selected variant matches the required pressure range and electrical interface for the target application. Cross-reference datasheet specifications against site requirements before purchase.
Pressure Sensors Transducers Selection Notes
Select this model for applications requiring hygienic compliance and resistance to aggressive cleaning. Consider the G1 thread size and -1 to 10 bar range. Evaluate whether IO-Link functionality is necessary for remote configuration versus manual button operation based on system complexity.
Pressure Sensors Transducers Part Context
Manufactured by ifm efector, Inc., a subsidiary of ifm electronic GmbH. The company specializes in industrial sensors and controls for automation. This product line targets sectors including food production, mobile equipment, and assembly robotics, emphasizing data access and machine safety.
Pressure Sensors Transducers Replacement Considerations
PI1704 is a documented alternative product within the same manufacturer portfolio. Verify technical parameters such as pressure range and output types when substituting, as differences may exist between these models.
