PI2796 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SENSOR 36PSI 1" .02A. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PI2796
- Description：SENSOR 36PSI 1" .02A
- Series：-
- Mfr：ifm efector, inc.
- Package：Box
- Applications：-
- Pressure Type：-
- Operating Pressure：-1.8PSI ~ 36PSI (-12.5kPa ~ 250kPa)
- Output Type：Analog Current, NPN/PNP- NC/NO
- Output：4 mA ~ 20 mA
- Accuracy：±0.2%
- Voltage - Supply：18V ~ 32V
- Port Size：Male - 1" (25.4mm) BSPP
- Port Style：Threaded
- Features：-
- Termination Style：M12
- Maximum Pressure：725.19PSI (5000kPa)
- Operating Temperature：-25°C ~ 80°C
- Mounting Type：-
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PI2796
Pressure Sensors Transducers Overview

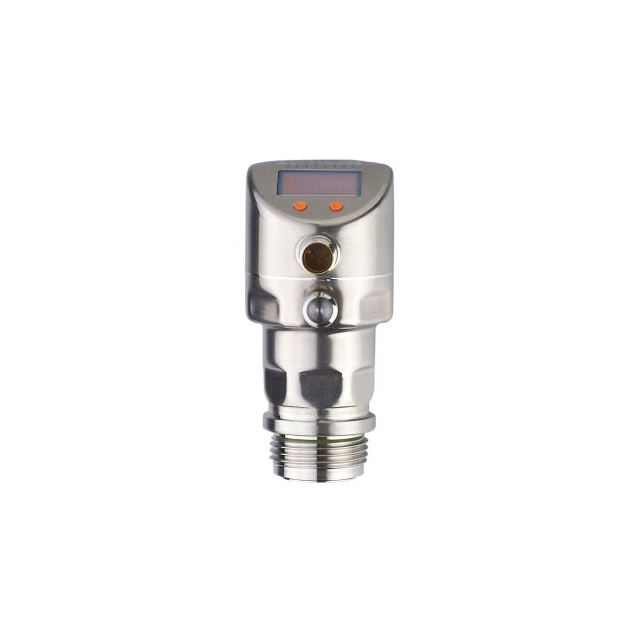

The PI2796 is an electronic flush pressure sensor manufactured by ifm efector, inc., designed for hygienic industrial environments. It features a robust stainless steel housing and a front-flush design resistant to high-pressure cleaning and aggressive agents. The sensor operates within a pressure range of -1.8 PSI to 36 PSI (-12.5 kPa to 250 kPa) and provides a 4 mA to 20 mA output signal. It supports a male 1-inch (25.4 mm) BSPP thread connection and achieves IP67/IP68/IP69K protection ratings.
Pressure Sensors Transducers Feature Summary
- Hygienic front-flush design suitable for food and beverage processing
- Robust stainless steel construction resistant to high-pressure cleaning
- Integrated display for local monitoring
Pressure Sensors Transducers Applications
- Food and beverage industry processing equipment
- High-pressure cleaning systems
- Industrial automation requiring hygienic standards
Pressure Sensors Transducers Procurement Notes
Verify the specific process connection thread size and material compatibility with your application media before procurement. Confirm that the required pressure range aligns with system operating parameters. Ensure the IP69K rating meets your facility's hygiene and cleaning protocol requirements. Check for any necessary mounting accessories or display covers specified in the official datasheet.
Pressure Sensors Transducers Selection Notes
Select this model when hygienic design and resistance to harsh cleaning agents are critical. The flush diaphragm prevents contamination buildup compared to protruding sensors. Consider the 4-20mA analog output for integration with standard PLC systems. Evaluate the temperature resistance limits against your specific process conditions to ensure long-term reliability.
Pressure Sensors Transducers Part Context
The PI2796 belongs to ifm's portfolio of electronic pressure sensors tailored for demanding industrial applications. It complements other ifm process sensors by offering specialized hygienic solutions. The product line emphasizes durability and ease of maintenance in sectors where cleanliness and operational uptime are paramount.
Pressure Sensors Transducers Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing mounting hardware and signal conditioning requirements when considering alternative models from different manufacturers.
