PI3WVR648GEAEX

Overview

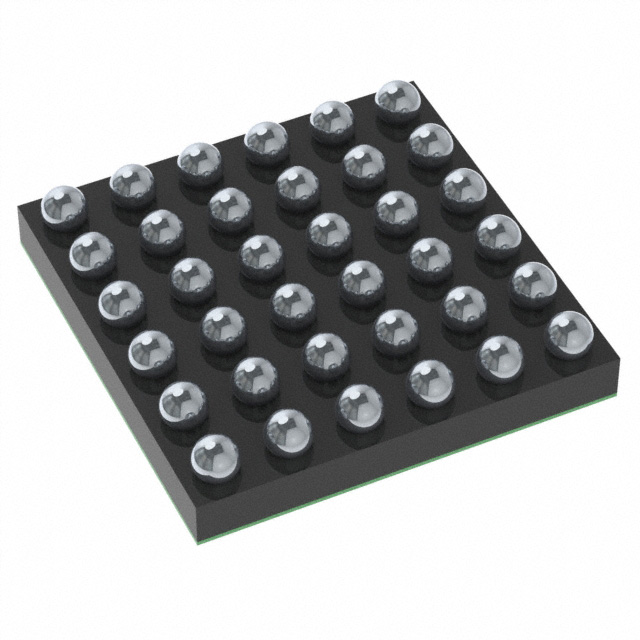

The PI3WVR648GEAEX is a four-data-lane MIPI switch featuring ten channels of single-pole, double-throw (SPDT) configuration. It supports switching between high-speed and low-power MIPI signals for CSI/DSI and C-PHY/D-PHY modules. The device operates within a voltage range of 1.5V to 5V. Key electrical parameters include a typical bandwidth of 6.0 GHz, data rate support up to 3.5Gsps for C-PHY and 4.5Gb/s for D-PHY, and input signal levels from 0 to 1.3V. Quiescent current is typically 15μA with a maximum standby current of 1μA. The component utilizes a 36-ball WLCSP package.

Feature Summary

• Supports MIPI D-PHY and C-PHY specifications for high-speed and low-power signal switching
• Provides low skew performance with typical opposite transition skew of 2ps
• Features ultra-low power consumption with minimal standby current draw
• Includes robust electrostatic discharge protection rated at 2kV HBM

Applications

• Cellular phones and smartphones
• Tablets
• Laptops
• Displays

Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to confirm packaging details. The 'X' suffix indicates tape and reel packaging. Confirm RoHS compliance status and lead-free definitions directly with Diodes Incorporated quality standards before finalizing procurement plans.

Selection Notes

Select this component when designing systems requiring multi-lane MIPI signal routing between display or camera interfaces. Ensure the design accommodates the 1.5V to 5V operating voltage range. Verify that the required data rates do not exceed the specified limits for C-PHY or D-PHY modes.

Part Context

This part belongs to the PI3WVR series of video and MIPI switches manufactured by Diodes Incorporated. It is specifically engineered for mobile and portable electronics where space constraints and power efficiency are critical. The WLCSP package allows for compact board layouts in modern handheld devices.

Replacement Considerations

Consult official substitution guides for compatible alternatives within the same product family. Verify pinout compatibility and electrical parameter alignment before replacing existing components in established designs.
