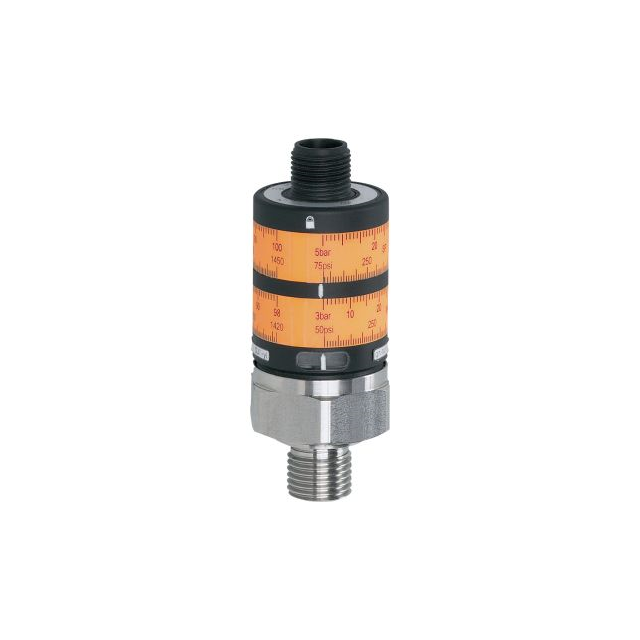

PK6521 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SWITCH 3620PSI PNP- NC/NO 1/4". Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PK6521
- Description：SWITCH 3620PSI PNP- NC/NO 1/4"
- Series：-
- Mfr：ifm efector, inc.
- Package：Box
- Applications：-
- Pressure Type：Switch
- Operating Pressure：3625.94PSI (25000kPa)
- Output Type：PNP- NC/NO
- Output：-
- Accuracy：±2.5%
- Voltage - Supply：9.6V ~ 32V
- Port Size：Male - 1/4" (6.35mm) BSPP
- Port Style：Threaded
- Features：-
- Termination Style：M12, 4 Pin
- Maximum Pressure：14500PSI (100000kPa)
- Operating Temperature：-25°C ~ 80°C
- Mounting Type：-
- Package / Case：Cylinder, Threaded
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PK6521
Pressure Sensors Transducers Overview
The IFM PK6521 is a pressure switch designed for industrial automation applications. It features a robust stainless steel measuring cell ensuring high long-term stability and reliable performance. The device supports a pressure range of 0 to 3625 psi (0 to 250 bar). Electrical connections are facilitated via an M12 connector, while the process connection utilizes a G 1/4 NPT interface. The unit offers two outputs and carries an IP67 protection rating, making it suitable for demanding environments.
Pressure Sensors Transducers Feature Summary
- Intuitive switch point setting using two setting rings for optimum reading
- High long-term stability provided by a robust stainless steel measuring cell
- Dual output configuration for versatile control signal processing
Pressure Sensors Transducers Applications
- Industrial automation systems
- Machine feedback and position detection
- Process monitoring and maintenance
Pressure Sensors Transducers Procurement Notes
Verify that the specific order includes the correct M12 connector type and G 1/4 NPT thread specification. Confirm the required pressure range aligns with the 0-3625 psi capability. Ensure environmental conditions meet the IP67 rating requirements. Cross-check the part number against official IFM documentation to avoid confusion with similar PK series models.
Pressure Sensors Transducers Selection Notes
Select this model when precise switch point adjustment is critical for system operation. The dual output feature allows for complex logic integration in automated workflows. Consider the stainless steel construction for durability in harsh industrial settings. Evaluate the M12 connectivity for ease of installation within existing control architectures.
Pressure Sensors Transducers Part Context
This component belongs to the IFM PK Series, which focuses on pressure sensing solutions. The series is engineered for reliability in various industrial sectors. The PK6521 specifically addresses needs for accurate pressure monitoring with straightforward setup procedures. It complements other IFM sensors in comprehensive automation packages.
Pressure Sensors Transducers Replacement Considerations
Consult official IFM documentation for direct substitutes within the PK series. Verify compatibility regarding thread size and electrical interface before swapping. Ensure replacement units maintain the same IP67 rating and output configuration.
