PK6523 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SWITCH 362PSI PNP- NC/NO 1/4". Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PK6523
- Description：SWITCH 362PSI PNP- NC/NO 1/4"
- Series：-
- Mfr：ifm efector, inc.
- Package：Box
- Applications：-
- Pressure Type：Switch
- Operating Pressure：362.59PSI (2500kPa)
- Output Type：PNP- NC/NO
- Output：-
- Accuracy：±2.5%
- Voltage - Supply：9.6V ~ 32V
- Port Size：Male - 1/4" (6.35mm) BSPP
- Port Style：Threaded
- Features：-
- Termination Style：M12, 4 Pin
- Maximum Pressure：7251.89PSI (50000kPa)
- Operating Temperature：-25°C ~ 80°C
- Mounting Type：-
- Package / Case：Cylinder, Threaded
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PK6523
Pressure Sensors Transducers Overview

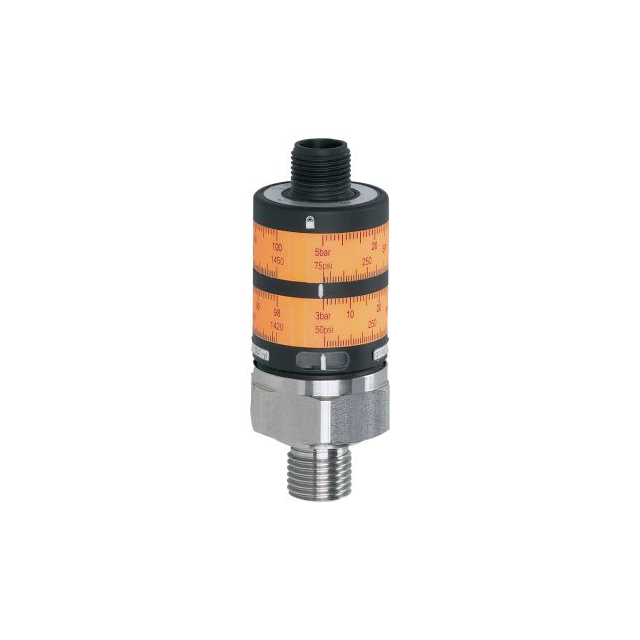

The PK6523 is an electronic pressure switch manufactured by ifm efector, inc. It features a male process connection and utilizes an M12 connector for electrical interfacing. The device is designed for hydraulic and pneumatic applications, offering high pressure peak resistance and durability against aggressive media. It supports intuitive switch point setting and includes two outputs for control integration.
Pressure Sensors Transducers Feature Summary
- Intuitive switch point setting mechanism
- High pressure peak resistance capability
- Resistance against aggressive media
- Suitable for liquid and gaseous media
Pressure Sensors Transducers Applications
- Hydraulic systems
- Pneumatic systems
- Cylinder monitoring
- Industrial automation control
Pressure Sensors Transducers Procurement Notes
Verify the specific process connection thread size and material compatibility with the intended medium before ordering. Confirm that the operating pressure range aligns with system requirements. Ensure the M12 connector type matches existing wiring infrastructure. Check for any regional certification requirements applicable to the installation environment.
Pressure Sensors Transducers Selection Notes
Select this model when high peak pressure resistance is required in harsh environments. Consider its suitability for both liquid and gaseous media applications. Evaluate the need for intuitive setup features to simplify installation. Compare output configurations and connector types against existing system standards to ensure compatibility.
Pressure Sensors Transducers Part Context
This component belongs to ifm's electronic pressure switch series, designed for industrial automation. It complements other sensors and controllers from the manufacturer, supporting assembly, robotics, and material handling sectors. The product line emphasizes durability and ease of use in demanding mechanical environments.
Pressure Sensors Transducers Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult official ifm catalogs or authorized distributors for cross-reference information regarding equivalent models with similar pressure ratings and interface specifications.
