PK6524

Pressure Sensors Transducers Overview

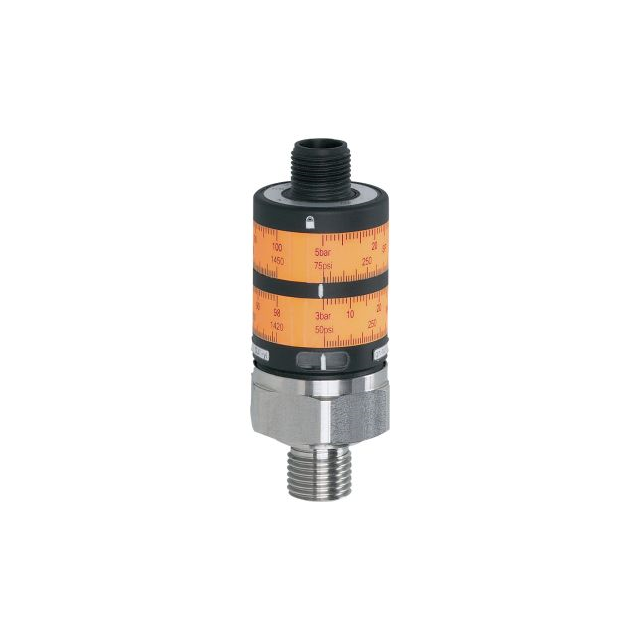

The PK6524 is an electronic pressure switch from the PK series, designed for hydraulic and pneumatic applications. It features a measuring range of 0 to 10 bar (0 to 145 psi) with a process connection of G 1/4 external thread. The device operates on a DC voltage supply of 9.6 to 32 V. It includes an M12 connector for electrical interface and provides IP67 protection against dust and water ingress. The unit utilizes a robust stainless steel measuring cell for high long-term stability and resistance to pressure peaks.

Pressure Sensors Transducers Feature Summary

• Intuitive switch point setting via two mechanical adjustment rings with clear scale markings
• Robust construction using a stainless steel measuring cell for durability and corrosion resistance
• Mechanical locking mechanism prevents unintended adjustment changes during operation

Pressure Sensors Transducers Applications

• Hydraulic systems monitoring
• Pneumatic control circuits
• Industrial machinery pressure regulation
• Mobile vehicle equipment

Pressure Sensors Transducers Procurement Notes

Verify that the specific part number PK6524 corresponds to the 0-10 bar range variant. Confirm the process connection type is G 1/4 male thread and the electrical interface is M12. Ensure the operating voltage requirements match the system's 9.6-32 V DC supply. Check for any specific media compatibility requirements regarding liquids or gases before procurement.

Pressure Sensors Transducers Selection Notes

Select this model when a compact electronic pressure switch with a 10 bar range is required. It is suitable for environments requiring IP67 protection and resistance to pressure spikes. Choose this over other PK series variants if the application specifically demands the 0-10 bar measurement span rather than higher ranges like 0-400 bar found in other models.

Pressure Sensors Transducers Part Context

The PK6524 belongs to the PK series of electronic pressure sensors by IFM efector, inc. This series represents a generation of compact, easy-to-adjust pressure switches. The PK line is characterized by its simple operation, long service life, and ability to withstand harsh industrial conditions, making it a standard solution for various automation tasks.

Pressure Sensors Transducers Replacement Considerations

PK6522 covers 0-100 bar range; PK6520 covers 0-400 bar range. Verify range compatibility before substitution. Other PK series models share similar form factors but differ significantly in pressure specifications.
