PMEG100V060ELPDAZ

Single Diodes Overview

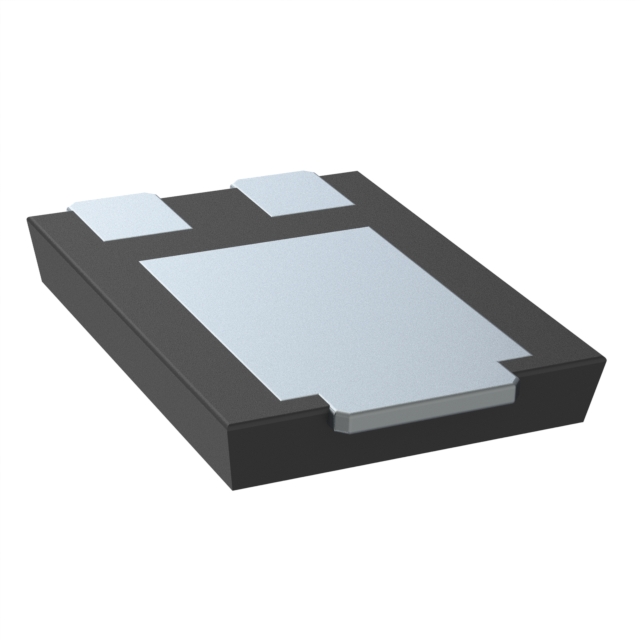

The PMEG100V060ELPDAZ is a Maximum Efficiency General Application (MEGA) Schottky barrier rectifier from Nexperia, encapsulated in the CFP15 (SOT1289) surface-mount package. It features an average forward current of 6 A and a reverse voltage rating of 100 V. The device utilizes high Schottky barrier technology to achieve low leakage current and low forward voltage. Key electrical parameters include a maximum forward voltage of 840 mV at 6 A and a maximum reverse current of 0.45 µA at 100 V. It supports junction temperatures up to 175 °C and holds AEC-Q101 qualification for automotive reliability.

Single Diodes Feature Summary

• Low leakage current achieved through high Schottky barrier technology
• High power capability enabled by clip-bonding technology and integrated heat sink
• Small and thin SMD plastic package with typical height of 0.78 mm
• Qualified for automotive applications under AEC-Q101 standards

Single Diodes Applications

• Low voltage rectification
• Automotive LED lighting
• High efficiency DC-to-DC conversion
• Switch mode power supply
• Reverse polarity protection

Single Diodes Procurement Notes

Verify the specific ordering suffix 'AZ' against the official Nexperia datasheet to confirm packaging details, as standard listings may reference 'PD'. Ensure the component meets AEC-Q101 requirements if used in automotive designs. Confirm thermal management strategies align with the specified junction temperature limits and PCB mounting conditions provided in the manufacturer's documentation.

Single Diodes Selection Notes

Select this component for applications requiring low forward voltage and minimal leakage current within a compact footprint. The CFP15 package offers significant board space savings compared to traditional DPAK or SMB packages while maintaining comparable electrical performance. Consider the 175 °C junction temperature rating for high-temperature environments and verify compatibility with automated optical inspection due to the flat lead form.

Single Diodes Part Context

This part belongs to Nexperia's MEGA Schottky barrier rectifier family, designed for general-purpose applications. It is housed in the CFP15 (SOT1289) power and flat lead SMD plastic package. The series includes variants optimized for different voltage and current ratings, with some versions featuring trench technology for even lower leakage. The PMEG100V060ELPDAZ specifically targets high-efficiency conversion and automotive lighting circuits.

Single Diodes Replacement Considerations

Direct substitutes within the same package and specification range include PMEG100V080ELPE and PMEG100T050ELPE. Verify pinout compatibility and thermal characteristics when replacing with other Schottky diodes in the CFP15 package.
