PMEG2005AESFYL

Single Diodes Overview

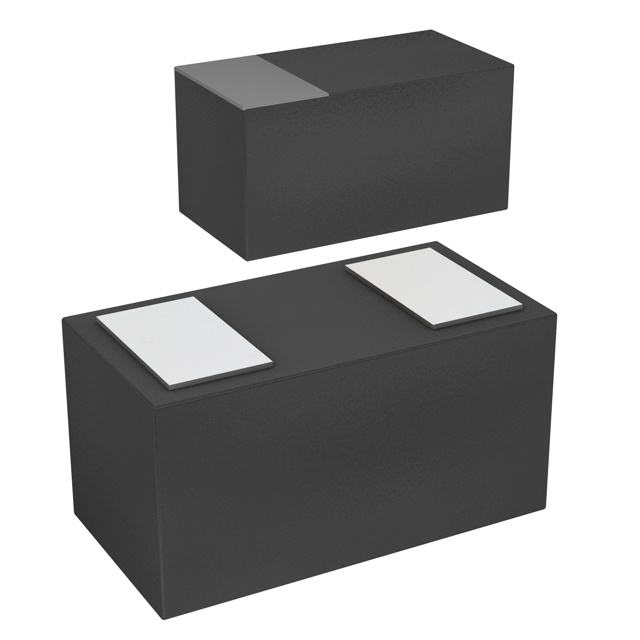

The PMEG2005AESFYL is a planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier manufactured by Nexperia. It features an integrated guard ring for stress protection and is housed in a DSN0603-2 (SOD962-2) leadless ultra-small Chip-Scale Package with a typical height of 0.3 mm. The device supports an average forward current of 0.5 A and a reverse voltage of 20 V. Key electrical characteristics include a typical forward voltage of 245 mV at 10 mA, a typical reverse current of 5 µA at 10 V, and a reverse recovery time of 1.9 ns.

Single Diodes Feature Summary

• Planar MEGA Schottky barrier technology provides low forward voltage and high efficiency.
• Integrated guard ring ensures enhanced stress protection and reliability.
• Ultra-small DSN0603-2 leadless package enables high-density circuit board designs.

Single Diodes Applications

• Low voltage rectification
• High efficiency DC-to-DC conversion
• Switch mode power supply
• LED backlight for mobile application

Single Diodes Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct packaging configuration. Confirm that the component meets all required environmental and thermal specifications for the intended design environment before finalizing procurement decisions.

Single Diodes Selection Notes

Select this component for applications requiring compact form factors and efficient low-voltage rectification. Ensure the design accommodates the thermal resistance characteristics provided in the datasheet to maintain junction temperatures within safe operating limits during operation.

Single Diodes Part Context

This device belongs to the PMEG series of Schottky barrier rectifiers from Nexperia. These components are engineered for general-purpose applications where space constraints and energy efficiency are critical design parameters. The series utilizes advanced planar technology to deliver consistent performance across various consumer and industrial electronics.

Single Diodes Replacement Considerations

Consult the official Nexperia replacement guide or cross-reference tools for verified substitute part numbers. Do not assume compatibility based on similar package types or nominal ratings without verifying electrical characteristics and pin configurations.

Single Diodes FAQ

What is the maximum junction temperature for the PMEG2005AESF?

The maximum junction temperature is 150 °C.

Does the PMEG2005AESF have automotive qualification?

No, unless explicitly stated otherwise in the data sheet, this product is not suitable for automotive use and is not qualified according to automotive testing requirements.
