PN2560

Pressure Sensors Transducers Overview

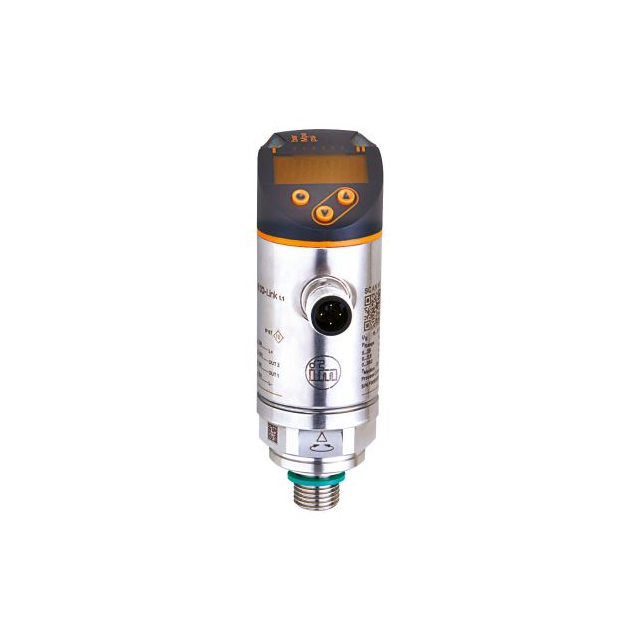

The ifm efector PN2560 is a high-performance pressure sensor designed for industrial applications requiring precise measurement. It features an operating pressure of 8,702.26 PSI (60,000 kPa) and a maximum pressure rating of 36,259 PSI (250,000 kPa). The device provides analog output signals ranging from 4 mA to 20 mA and 0 V to 10 V. It utilizes a male 1/4 inch (6.35mm) BSPP process connection. This sensor is engineered for reliability in demanding environments, supporting process control and machine safety systems.

Pressure Sensors Transducers Feature Summary

• High-pressure capability with significant overpressure protection
• Dual analog signal output options for flexible integration
• Robust mechanical construction with standardized process connection

Pressure Sensors Transducers Applications

• Industrial process control systems
• Machine safety monitoring
• Hydraulic and pneumatic system diagnostics

Pressure Sensors Transducers Procurement Notes

Verify the specific process connection type and output signal requirements against your system interface before ordering. Confirm that the operating pressure range aligns with your application's maximum expected pressure. Ensure compatibility with existing cabling and mounting hardware. Review the manufacturer's warranty terms regarding defect coverage and return procedures. Validate environmental ratings for your installation site.

Pressure Sensors Transducers Selection Notes

Select this model when high-pressure measurement accuracy is critical. Consider the available analog outputs for compatibility with your PLC or controller inputs. Evaluate the physical dimensions and connection size for space constraints. Assess the need for display functionality if real-time local reading is required. Compare against lower-pressure alternatives if operational limits are not fully utilized.

Pressure Sensors Transducers Part Context

ifm efector specializes in industrial sensors and controls to improve Overall Equipment Effectiveness. The company provides IO-Link connectivity and condition monitoring solutions. Their product line includes pressure, flow, temperature, and vibration sensors. The PN2560 fits within their process sensor portfolio for manufacturing automation.

Pressure Sensors Transducers Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing mounting brackets and cable assemblies when sourcing alternatives.
