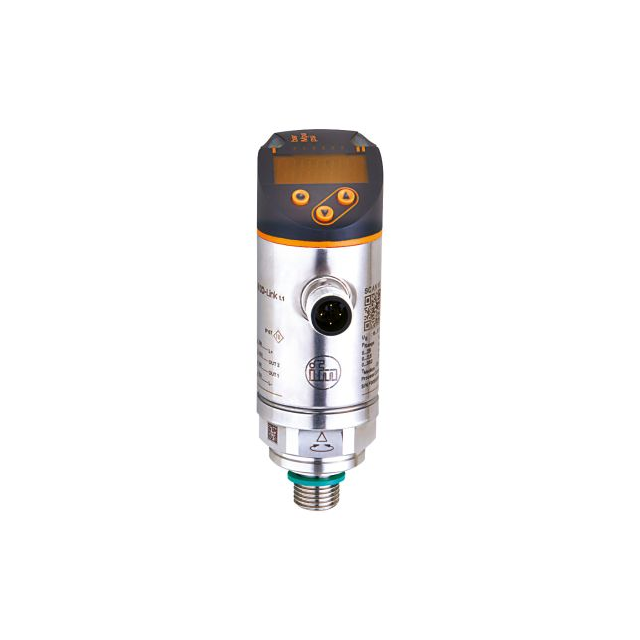

PN2570

$476.55

Description：SENSOR 5802PSI 1/4" 10V
Series：-
Mfr：ifm efector, inc.
Package：Box

SKU:c996100b898e Category: Pressure Sensors, Transducers Brand: ifm efector, inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PN2570 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SENSOR 5802PSI 1/4" 10V. Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for PN2570

Description：SENSOR 5802PSI 1/4" 10V
Series：-
Mfr：ifm efector, inc.
Package：Box
Applications：-
Pressure Type：-
Operating Pressure：5801.51PSI (40000kPa)
Output Type：Analog Current, Analog Voltage, NPN/PNP- NC/NO
Output：4mA ~ 20mA, 0V ~ 10V
Accuracy：±0.4%
Voltage - Supply：18V ~ 30V
Port Size：Male - 1/4" (6.35mm) BSPP
Port Style：Threaded
Features：-
Termination Style：M12, 4 Pin
Maximum Pressure：24656PSI (170000kPa)
Operating Temperature：-25°C ~ 80°C
Mounting Type：-
Package / Case：Module
Supplier Device Package：-
Grade：-
Qualification：-

Pressure Sensors Transducers datasheet and documents for PN2570

PN2570

Pressure Sensors Transducers Overview

The ifm efector PN2570 is a fluid pressure sensor designed for industrial automation applications. It features a male G1/4 (BSPP) connection and operates on an 18-30VDC supply. The device provides analog outputs of 4-20mA and 0-10V, with a maximum pressure rating of 400 bar (5801.51 PSI). It includes a large bright 4-digit alphanumeric display for continuous system pressure evaluation.

Pressure Sensors Transducers Feature Summary

Continuous pressure monitoring with real-time display
Dual analog output capability for flexible integration
Robust construction for industrial environments

Pressure Sensors Transducers Applications

Industrial manufacturing systems
Automation machinery
Process monitoring systems

Pressure Sensors Transducers Procurement Notes

Verify the specific ordering suffix to ensure correct cable length, connector type, and process connection details match your application requirements. Confirm that the 400 bar maximum pressure rating aligns with your system's operational limits. Check for any required Declaration of Decontamination forms if returning process sensors for warranty evaluation. Ensure the 18-30VDC power supply is compatible with your existing infrastructure before purchase.

Pressure Sensors Transducers Selection Notes

Select this model when a local digital display is required for immediate pressure reading without external controllers. The dual 4-20mA and 0-10V outputs allow compatibility with various PLC or DCS input types. The G1/4 BSPP thread ensures standard mechanical integration. Consider the 400 bar limit for high-pressure hydraulic or pneumatic circuits. Verify environmental conditions against the sensor's operating specifications.

Pressure Sensors Transducers Part Context

The PN2570 belongs to ifm's process sensor portfolio, which includes pressure, temperature, level, flow, and conductivity devices. These sensors are designed to improve Overall Equipment Effectiveness by providing real-time production data. The product line supports predictive maintenance and machine safety initiatives in sectors like automotive, material handling, and food production.
