PN2593

Pressure Sensors Transducers Overview

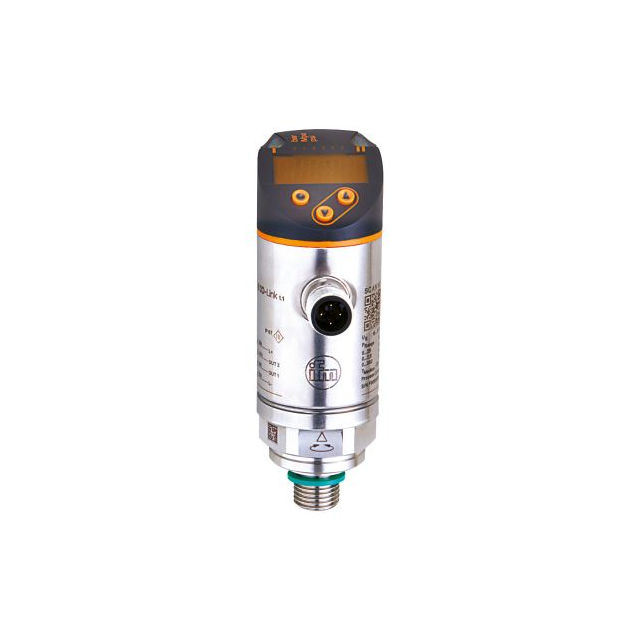

The ifm efector PN2593 is a digital pressure sensor designed for industrial applications requiring high reliability and burst protection. It features a stainless steel housing and includes an integrated display for local monitoring. The sensor supports multiple output types, including analog current (4 mA to 20 mA) and analog voltage (0 V to 10 V), alongside NPN/PNP switching options. It operates within a temperature range of -25°C to 80°C and measures pressure from -100 kPa to 2500 kPa (-14.5 PSI to 362.6 PSI). Key specifications include 0.15% full-range repeatability and a vacuum male connection with a 1/4 inch BSPP interface.

Pressure Sensors Transducers Feature Summary

• Integrated digital display for immediate local pressure reading
• Stainless steel housing construction for durability and corrosion resistance
• High burst and overpressure protection mechanisms
• Versatile output configuration supporting analog and switching signals

Pressure Sensors Transducers Applications

• Industrial process control systems
• Hydraulic and pneumatic machinery monitoring
• Manufacturing equipment pressure verification
• Automated production line safety interlocks

Pressure Sensors Transducers Procurement Notes

Verify the specific ordering suffix to confirm the exact output type and connection thread required for your system. Ensure the selected model matches the process medium compatibility and electrical supply constraints. Cross-reference the pressure range against maximum operating limits to prevent damage. Confirm that the mounting configuration aligns with existing panel or pipe infrastructure before finalizing the purchase order.

Pressure Sensors Transducers Selection Notes

Choose the PN2593 when both visual feedback and remote signal transmission are necessary. Select this model for environments requiring robust mechanical protection due to its stainless steel design. Consider the available output options to match existing PLC or controller input requirements. Evaluate the operating temperature range to ensure suitability for the specific ambient conditions of the installation site.

Pressure Sensors Transducers Part Context

This component belongs to ifm's digital pressure sensor portfolio, which emphasizes ease of integration and real-time data access. The series supports IIoT connectivity through IO-Link compatible variants, although the base PN2593 focuses on standard analog and switching outputs. It serves as a critical node in automation architectures where precise pressure monitoring directly impacts process quality and machine safety protocols.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility by matching the pressure range, output signal type, and physical connection dimensions. Consult official ifm technical sheets for direct cross-references if upgrading from legacy models.

Pressure Sensors Transducers FAQ

What is the pressure measurement range of the PN2593?

The sensor measures pressure from -100 kPa to 2500 kPa, which corresponds to -14.5 PSI to 362.6 PSI.

Does the PN2593 include a display?

Yes, the PN2593 model is equipped with an integrated digital display for local pressure indication.

What materials is the housing made of?

The sensor features a stainless steel housing to provide durability and protection against harsh industrial environments.
