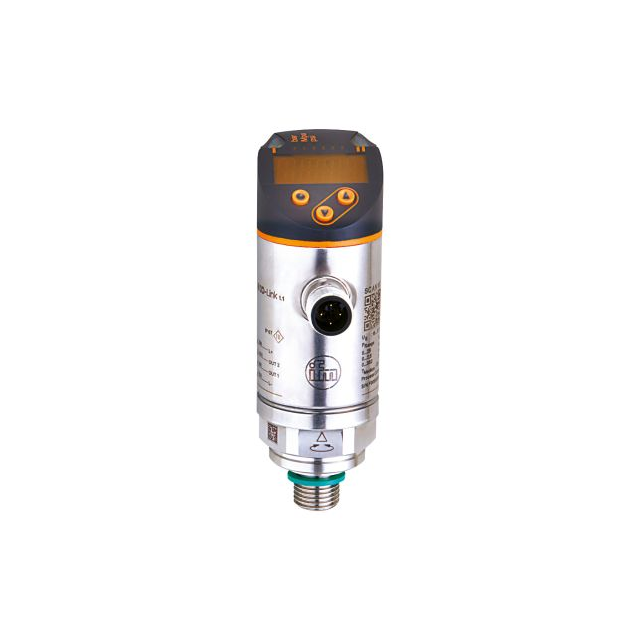

PN2594

$462.60

Description：SENSOR 145.04PSI 1/4" 10V
Series：-
Mfr：ifm efector, inc.
Package：Box

SKU:f2c7bc301c59 Category: Pressure Sensors, Transducers Brand: ifm efector, inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PN2594 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SENSOR 145.04PSI 1/4" 10V. Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for PN2594

Description：SENSOR 145.04PSI 1/4" 10V
Series：-
Mfr：ifm efector, inc.
Package：Box
Applications：-
Pressure Type：Vacuum
Operating Pressure：-14.5PSI ~ 145.04PSI (-100kPa ~ 1000kPa)
Output Type：Analog Current, Analog Voltage, NPN/PNP- NC/NO
Output：4mA ~ 20mA, 0V ~ 10V
Accuracy：±0.4%
Voltage - Supply：18V ~ 30V
Port Size：Male - 1/4" (6.35mm) BSPP
Port Style：Threaded
Features：-
Termination Style：M12, 4 Pin
Maximum Pressure：2175.57PSI (15000kPa)
Operating Temperature：-25°C ~ 80°C
Mounting Type：-
Package / Case：Module
Supplier Device Package：-
Grade：-
Qualification：-

Pressure Sensors Transducers datasheet and documents for PN2594

PN2594

Pressure Sensors Transducers Overview

The PN2594 is a pressure sensor featuring a ceramic-capacitive measuring principle with a special support of the measuring diaphragm, ensuring immunity to overload operation and high pressure. It provides two switching outputs, one programmable as IO-Link and the other as an analogue output. The device includes a red/green display for clear identification of the acceptable range. It operates within a pressure range of -14.5 PSI to 145.04 PSI (-100 kPa to 1000 kPa) and features a vacuum male connection with a 1/4 inch (6.35 mm) BSPP thread.

Pressure Sensors Transducers Feature Summary

Immunity to overload operation and high pressure due to ceramic-capacitive measuring principle
Flexible design allowing rotation in any direction once fitted
Integrated red/green display for visual range identification

Pressure Sensors Transducers Applications

Industrial automation process control
Machine condition monitoring systems
Mobile equipment applications

Pressure Sensors Transducers Procurement Notes

Verify that the specific application requires the stated pressure range and thread type. Confirm compatibility with existing IO-Link masters if utilizing the programmable digital output. Ensure the installation environment supports the sensor's operational parameters. Review warranty terms regarding defect claims and required documentation for process sensors.

Pressure Sensors Transducers Selection Notes

Select this model when high-pressure resistance and overload immunity are critical. The flexible rotational design aids in installations with limited spatial orientation options. The combination of analogue and IO-Link outputs supports diverse integration requirements. Consider the visible display feature for simplified on-site diagnostics and status verification.

Pressure Sensors Transducers Part Context

ifm efector manufactures sensors and controls to improve Overall Equipment Effectiveness by providing real-time production data. The company serves industries including assembly, robotics, automotive, and food and beverage. Their products aim to enhance process control, predictive maintenance, and machine safety through integrated connectivity.
