PN2597

Pressure Sensors Transducers Overview

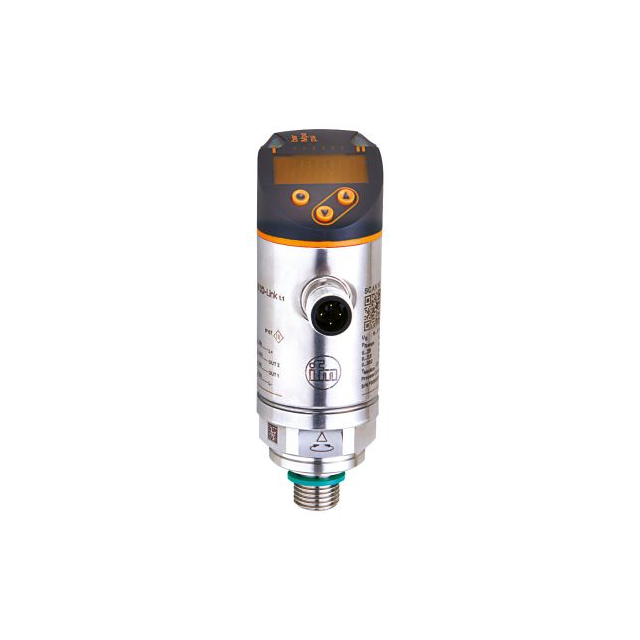

The PN2597 is a fluid pressure sensor manufactured by ifm efector, inc., designed for industrial monitoring applications. It features a male G1/4 (6.35mm) BSPP process connection and operates within a supply voltage range of 18-30VDC. The device measures pressures from -0.73PSI to 14.5PSI (-5kPa to 100kPa). Output signals include 4mA to 20mA current loop and 0V to 10V voltage options. This model integrates a digital display for enhanced visualization and supports IO-Link connectivity for data exchange.

Pressure Sensors Transducers Feature Summary

• Integrated digital display for clear process value indication
• IO-Link connectivity for advanced parameterization and diagnostics
• Robust construction suitable for hydraulic system monitoring
• Flexible output signal options including current and voltage

Pressure Sensors Transducers Applications

• Hydraulic power unit pressure monitoring
• Mobile equipment hydraulic systems
• Industrial machinery process control
• Predictive maintenance in manufacturing environments

Pressure Sensors Transducers Procurement Notes

Verify the specific output configuration required, as the PN2597 series may offer different variants for current or voltage outputs. Confirm the process connection type matches the application interface. Ensure the operating pressure range aligns with the maximum system pressure. Check for any specific IO-Link profile requirements if integrating into an existing master network. Review warranty terms regarding material defects and workmanship before finalizing procurement decisions.

Pressure Sensors Transducers Selection Notes

Select this model when a compact pressure sensor with local display visibility is required. Consider the G1/4 thread size for compatibility with standard hydraulic fittings. Evaluate the need for IO-Link functionality for remote parameter access. Compare the -5kPa to 100kPa range against actual system operating pressures to ensure adequate headroom. Assess whether the 18-30VDC supply voltage fits the available control cabinet power distribution.

Pressure Sensors Transducers Part Context

This component belongs to the PN series of pressure sensors from ifm electronic, known for integrating IO-Link technology. The series targets industries such as mobile equipment, metal forming, and assembly robotics. The PN2597 specifically addresses applications requiring precise fluid pressure measurement with user-friendly local feedback via its display module.

Pressure Sensors Transducers Replacement Considerations

Cross-reference part numbers within the PN series for similar pressure ranges and thread sizes. Verify electrical compatibility, specifically the 18-30VDC input and analog output types. Ensure mechanical dimensions and mounting configurations match the existing installation space.
