PN2598

$476.55

Description：SENSOR 3.63PSI 1/4" 10V
Series：-
Mfr：ifm efector, inc.
Package：Box

SKU:14f5908f8ea9 Category: Pressure Sensors, Transducers Brand: ifm efector, inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PN2598 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SENSOR 3.63PSI 1/4" 10V. Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for PN2598

Description：SENSOR 3.63PSI 1/4" 10V
Series：-
Mfr：ifm efector, inc.
Package：Box
Applications：-
Pressure Type：-
Operating Pressure：-0.18PSI ~ 3.63PSI (-1.25kPa ~ 25kPa)
Output Type：Analog Current, Analog Voltage, NPN/PNP- NC/NO
Output：4mA ~ 20mA, 0V ~ 10V
Accuracy：±0.4%
Voltage - Supply：18V ~ 30V
Port Size：Male - 1/4" (6.35mm) BSPP
Port Style：Threaded
Features：-
Termination Style：M12, 4 Pin
Maximum Pressure：435.11PSI (3000kPa)
Operating Temperature：-25°C ~ 80°C
Mounting Type：-
Package / Case：Module
Supplier Device Package：-
Grade：-
Qualification：-

Pressure Sensors Transducers datasheet and documents for PN2598

PN2598

Pressure Sensors Transducers Overview

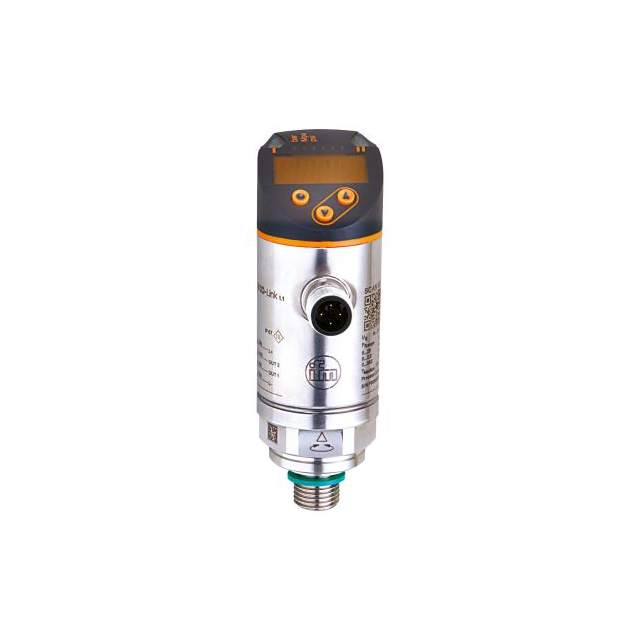

The PN2598 is a pressure sensor manufactured by ifm efector, inc. designed for measuring liquids and gases. It features an integrated display with black or metal options and utilizes an orange connector. The device supports multiple output modes including switching signals, analog signals, and IO-Link connectivity. It operates within a pressure range of -0.18 PSI to 3.63 PSI (-1.25 kPa to 25 kPa) and provides outputs of 4 mA to 20 mA or 0 V to 10 V. The process connection is a male 1/4 inch (6.35 mm) BSPP thread.

Pressure Sensors Transducers Feature Summary

Integrated visual display for local monitoring
IO-Link interface capability for digital communication
Supports analog and switching signal outputs

Pressure Sensors Transducers Applications

Measurement of liquid pressures
Measurement of gas pressures
Industrial automation systems requiring fluid monitoring

Pressure Sensors Transducers Procurement Notes

Verify the specific output configuration required for your application, as the model supports switching, analog, and IO-Link variants. Confirm the display type preference, either black or metal finish, during ordering. Ensure the process connection matches the system's 1/4 inch BSPP requirement. Check current availability status as stock levels may vary. Consult official documentation for detailed electrical specifications and mounting instructions before integration.

Pressure Sensors Transducers Selection Notes

Select this component when both local visual indication and remote digital communication are necessary. The IO-Link capability allows for advanced diagnostics and parameterization in smart factory environments. Consider the analog output requirements if legacy control systems are in use. The compact design with integrated display simplifies installation where space is limited. Evaluate the pressure range suitability against the maximum operating pressure of the target system.

Pressure Sensors Transducers Part Context

ifm efector, inc. specializes in industrial sensors and controls to improve Overall Equipment Effectiveness. The company provides solutions for monitoring pressure, flow, temperature, and vibration. Their products often include IO-Link connectivity to facilitate IIoT integration. The PN2598 fits within their portfolio of sensors designed for process control and predictive maintenance applications across various manufacturing sectors.
