PN2599

Pressure Sensors Transducers Overview

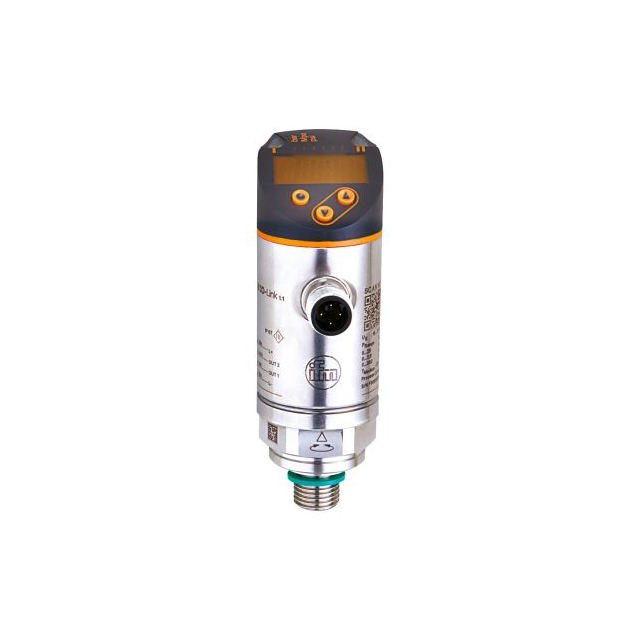

The PN2599 is a relative pressure sensor manufactured by ifm efector, Inc. It features a male 1/4 inch (6.35mm) BSPP threaded port for fluid connection. The device operates within a measurement range of -14.5 PSI to 14.5 PSI (-100 kPa to 100 kPa). Electrical outputs include an analog current signal of 4 mA to 20 mA and a voltage signal ranging from 0 V to 10 V. The sensor requires a supply voltage of 18 VDC to 30 VDC. It is designed for industrial applications involving pressure monitoring in fluid systems.

Pressure Sensors Transducers Feature Summary

• Provides dual analog output capabilities with programmable PNP-NO/NC functionality
• Features a robust cylindrical design suitable for industrial environments
• Incorporates a threaded port interface for secure fluid system integration

Pressure Sensors Transducers Applications

• Industrial process control monitoring
• Fluid system pressure tracking
• Machine tool hydraulic monitoring

Pressure Sensors Transducers Procurement Notes

Verify the specific output configuration required for your application, as the PN2599 supports both 4-20 mA and 0-10 V signals. Confirm that the 1/4 inch BSPP thread matches your existing manifold or piping specifications. Ensure the operating voltage range aligns with your PLC or controller inputs. Check for any regional certification requirements before finalizing the order.

Pressure Sensors Transducers Selection Notes

Select this model when a compact relative pressure sensor with flexible analog outputs is needed. The 1/4 inch BSPP connection is standard for many European and industrial machinery applications. Consider the -100 kPa to 100 kPa range for low-pressure differential or vacuum applications. The rugged construction makes it suitable for demanding factory floor conditions where reliable data acquisition is critical.

Pressure Sensors Transducers Part Context

ifm efector, Inc. specializes in industrial sensors and controls to improve Overall Equipment Effectiveness. The PN2599 belongs to their pressure sensor portfolio, which includes devices for monitoring pressure, flow, and temperature. These components help manufacturers implement predictive maintenance and enhance machine safety through real-time data access.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mounting hardware and cable assemblies when replacing legacy units.
