PN7071

Pressure Sensors Transducers Overview

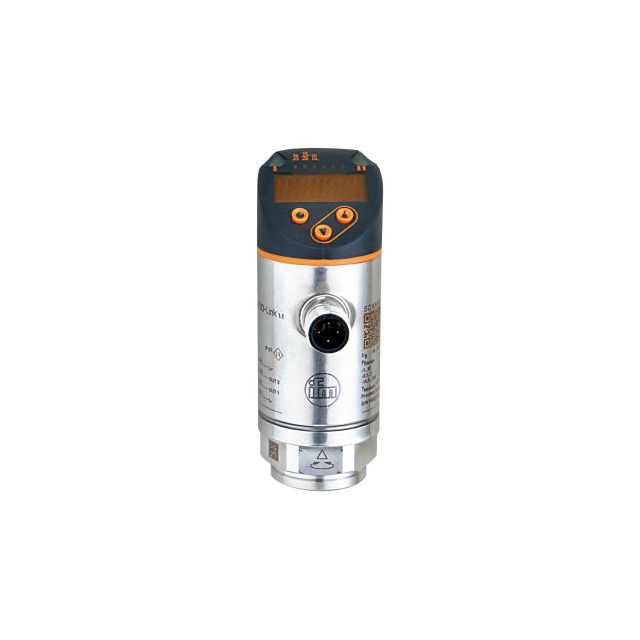

The IFM efector PN7071 is a full-metal pressure sensor designed for process technology applications, featuring a durable stainless steel housing suitable for the food and beverage industry. It supports IO-Link communication and offers configurable switch and analog outputs. The device measures pressures from 0 to 250 bar (0–3620 psi) with a G 1/4 internal thread system interface. It operates within a medium temperature range of -25°C to 80°C and includes a programmable red-green display for visual status indication.

Pressure Sensors Transducers Feature Summary

• Full-metal stainless steel construction ensures durability and resistance to strong cleaning agents in hygienic environments.
• IO-Link interface enables digital data transmission and parameterization for enhanced process monitoring.
• Configurable outputs allow selection between switch signals and analog modes via menu settings.
• Rotatable process connection facilitates optimal alignment during installation.

Pressure Sensors Transducers Applications

• Monitoring system pressure in hydraulic power units
• Process technology in the food and beverage industry
• Mobile heavy machinery hydraulic systems
• Industrial equipment requiring high-pressure monitoring

Pressure Sensors Transducers Procurement Notes

Verify the specific ordering code against the required output configuration and process connection type. Confirm that the device meets all necessary certification requirements for your region, such as CE or cULus. Ensure compatibility with existing IO-Link masters if digital communication is utilized. Check for any specific decontamination forms required for returns under warranty policies.

Pressure Sensors Transducers Selection Notes

Select the PN7071 when a robust, metal-housed pressure sensor is needed for hygienic or harsh industrial environments. It is suitable for applications requiring IO-Link connectivity and flexible output configuration. Consider the G 1/4 thread size and 250 bar range to ensure it matches the system's physical and pressure constraints. Evaluate the need for visual display features for on-site status checks.

Pressure Sensors Transducers Part Context

The PN7071 belongs to the IFM PN Series of pressure sensors, which are designed for process technology. This series emphasizes durability and ease of use, often featuring programmable displays and IO-Link capabilities. The PN7071 specifically targets applications requiring high hygiene standards and robust mechanical construction.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official IFM catalogs for direct replacements or cross-references based on specific technical requirements.

Pressure Sensors Transducers FAQ

What is the maximum pressure rating for the PN7071?

The PN7071 has a maximum pressure range of 0 to 250 bar.

Does the PN7071 support IO-Link communication?

Yes, the PN7071 supports IO-Link for digital data transmission and parameterization.

What is the process connection type for this sensor?

The PN7071 features a G 1/4 internal thread system interface.
