PN7094

Pressure Sensors Transducers Overview

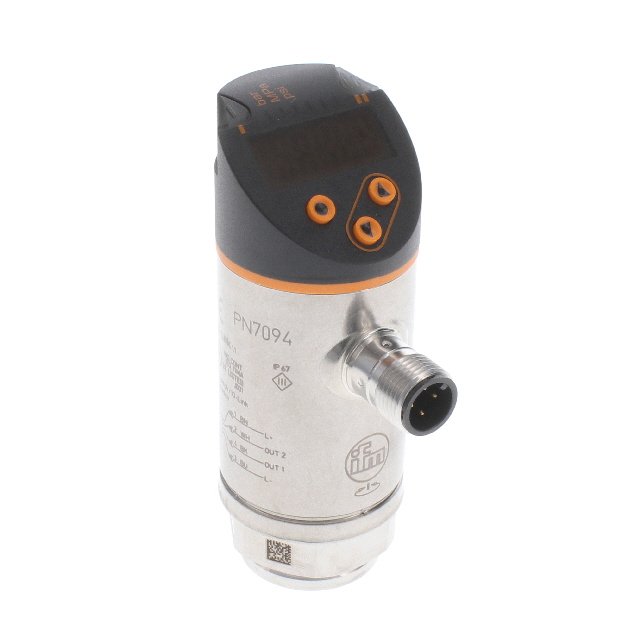

The IFM PN7094 is an electronic pressure sensor designed for measuring relative pressure in liquids and gases. It features a vacuum measurement range of 14.5 PSI to 145.0 PSI (100 kPa to 1000 kPa). The device operates on a supply voltage of 18V to 30V and provides NPN/PNP switching outputs with configurable NC/NO logic. Accuracy is rated at ±0.5%. It utilizes a male M12 x 1.0 threaded port connection and includes a 4-digit alphanumeric digital display. The unit withstands process temperatures from -25°C to 80°C and supports IO-Link communication.

Pressure Sensors Transducers Feature Summary

• Integrated electronic digital display for clear process visualization
• Configurable switching signals via IO-Link interface
• Robust cylindrical threaded housing design

Pressure Sensors Transducers Applications

• Monitoring system pressure in hydraulic circuits
• Industrial automation control systems
• Mobile equipment hydraulic power units

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix codes against official IFM documentation to ensure correct output type, connection style, and process thread compatibility. Confirm that the required pressure range matches the application's operational limits. Request the latest datasheet to validate electrical specifications and IO-Link EDS file availability before finalizing procurement orders.

Pressure Sensors Transducers Selection Notes

Select this model when a digital readout is required alongside standard switching functionality. Ensure the operating environment temperature falls within the specified -25°C to 80°C range. Verify that the M12 connector interface aligns with existing cabling infrastructure. Consider the ±0.5% accuracy rating for applications requiring precise pressure monitoring rather than simple threshold triggering.

Pressure Sensors Transducers Part Context

This component belongs to the IFM PN series of pressure sensors, which are engineered for industrial environments. The series typically combines sensing elements with electronic processing units to provide reliable signal transmission. These devices are part of IFM's broader portfolio of factory automation solutions, focusing on durability and ease of integration into modern control networks.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult official IFM documentation or authorized distributors for cross-reference information regarding legacy models or alternative series with compatible specifications.
