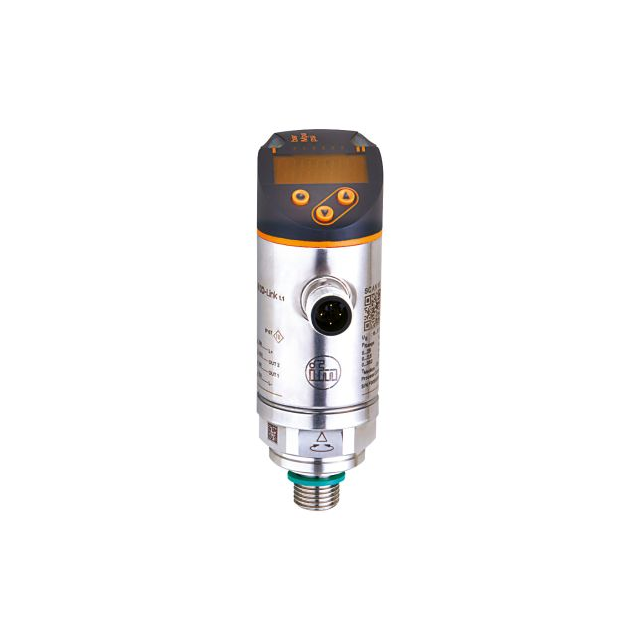

PN7560

$391.95

Description：SENSOR 8700PSI 1/4"
Series：-
Mfr：ifm efector, inc.
Package：Box

SKU:5865f378e6f6 Category: Pressure Sensors, Transducers Brand: ifm efector, inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PN7560 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SENSOR 8700PSI 1/4". Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for PN7560

Description：SENSOR 8700PSI 1/4"
Series：-
Mfr：ifm efector, inc.
Package：Box
Applications：-
Pressure Type：-
Operating Pressure：8702.26PSI (60000kPa)
Output Type：NPN/PNP- NC/NO
Output：-
Accuracy：±0.5%
Voltage - Supply：18V ~ 30V
Port Size：Male - 1/4" (6.35mm) BSPP
Port Style：Threaded
Features：-
Termination Style：M12, 4 Pin
Maximum Pressure：36259PSI (250000kPa)
Operating Temperature：-25°C ~ 80°C
Mounting Type：-
Package / Case：Module
Supplier Device Package：-
Grade：-
Qualification：-

Pressure Sensors Transducers datasheet and documents for PN7560

PN7560

Pressure Sensors Transducers Overview

The PN7560 is a fluid pressure sensor manufactured by ifm efector, inc. It features a male 1/4 inch (6.35mm) BSPP process connection and supports a maximum pressure of 600 bar (8702.26 PSI). The device operates on an 18-30VDC supply voltage. It provides two switching outputs, with one output integrated with an IO-Link communication interface for data transmission. The unit includes a red/green display to visually indicate the acceptable pressure range.

Pressure Sensors Transducers Feature Summary

Integrates IO-Link communication interface on one switching output
Features red/green display for clear identification of acceptable pressure ranges
Supports high-pressure applications up to 600 bar

Pressure Sensors Transducers Applications

Monitoring system pressure in hydraulic systems
Mobile heavy machinery such as excavators and wheel loaders
Industrial equipment including hydraulic presses and rolling mills

Pressure Sensors Transducers Procurement Notes

Verify the specific process connection type and pressure rating against application requirements before purchase. Confirm that the 18-30VDC supply voltage aligns with existing control systems. Ensure compatibility with IO-Link masters if data communication is required. Check warranty terms regarding material and workmanship defects. Validate that the module format fits the intended installation space.

Pressure Sensors Transducers Selection Notes

Select this model when high-pressure monitoring up to 600 bar is necessary. Choose based on the requirement for a male 1/4 inch BSPP connection. Consider the benefit of visual feedback provided by the red/green display. Evaluate the need for IO-Link connectivity for predictive maintenance or process optimization. Ensure the operating voltage range matches the available power supply.

Pressure Sensors Transducers Part Context

The PN7560 belongs to ifm's portfolio of industrial sensors designed to improve Overall Equipment Effectiveness. It is part of the company's strategy to provide real-time production data through IO-Link enabled devices. The sensor aids in process control and machine safety within automation environments.
