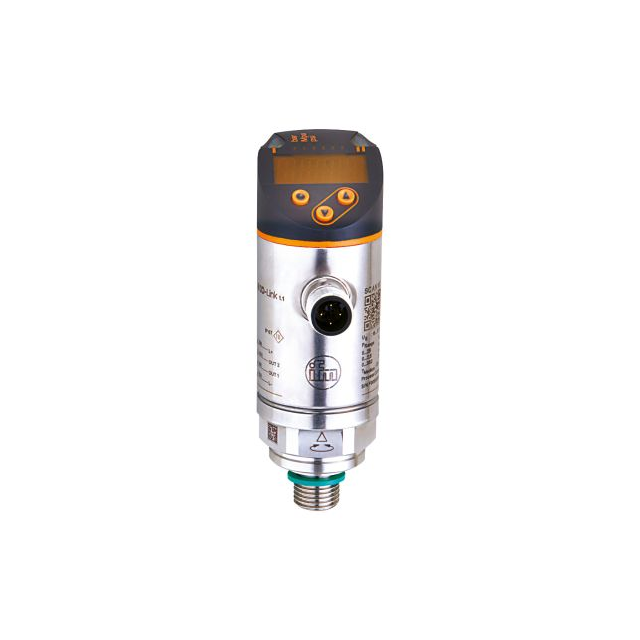

PN7571 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SENSOR 3620PSI 1/4". Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PN7571
- Description：SENSOR 3620PSI 1/4"
- Series：-
- Mfr：ifm efector, inc.
- Package：Box
- Applications：-
- Pressure Type：-
- Operating Pressure：3625.94PSI (25000kPa)
- Output Type：NPN/PNP- NC/NO
- Output：-
- Accuracy：±0.5%
- Voltage - Supply：18V ~ 30V
- Port Size：Male - 1/4" (6.35mm) BSPP
- Port Style：Threaded
- Features：-
- Termination Style：M12, 4 Pin
- Maximum Pressure：15954PSI (110000kPa)
- Operating Temperature：-25°C ~ 80°C
- Mounting Type：-
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PN7571
Pressure Sensors Transducers Overview
The PN7571 is an electronic pressure sensor from ifm efector, Inc. designed for industrial automation. It features a measuring range of 0 to 250 bar (0 to 3620 psi / 0 to 25 MPa). The device operates on a voltage supply of 18 to 30V DC (SELV/PELV) and includes two digital switching outputs. It incorporates IO-Link connectivity for data exchange and process monitoring.
Pressure Sensors Transducers Feature Summary
- Features a programmable red-green display that clearly indicates acceptable ranges.
- Includes two digital switching outputs for signal transmission.
- Supports IO-Link connectivity for integration into industrial networks.
- Process connection allows rotation for optimal alignment.
Pressure Sensors Transducers Applications
- Monitoring system pressure in hydraulic systems
- Integration with hydraulic power units
- Industrial automation machinery control
Pressure Sensors Transducers Procurement Notes
Verify the specific process connection type, such as BSPP, required for your installation. Confirm that the operating voltage range of 18 to 30V DC matches your system's power supply. Ensure compatibility with IO-Link masters if networked communication is necessary for your application setup.
Pressure Sensors Transducers Selection Notes
Select this model when a measurement range up to 250 bar is required. Consider the PN series for its enhanced visualization capabilities and ease of use. Verify that the male thread size aligns with existing piping or port specifications before procurement.
Pressure Sensors Transducers Part Context
The PN7571 belongs to the PN Series of pressure sensors manufactured by ifm efector, Inc. This series is designed to improve Overall Equipment Effectiveness by providing real-time production data. The manufacturer specializes in sensors and controls for various industrial sectors.
Pressure Sensors Transducers Replacement Considerations
Consult official ifm documentation for direct substitutes. Verify thread compatibility and electrical specifications when considering alternative models within the same product family.
