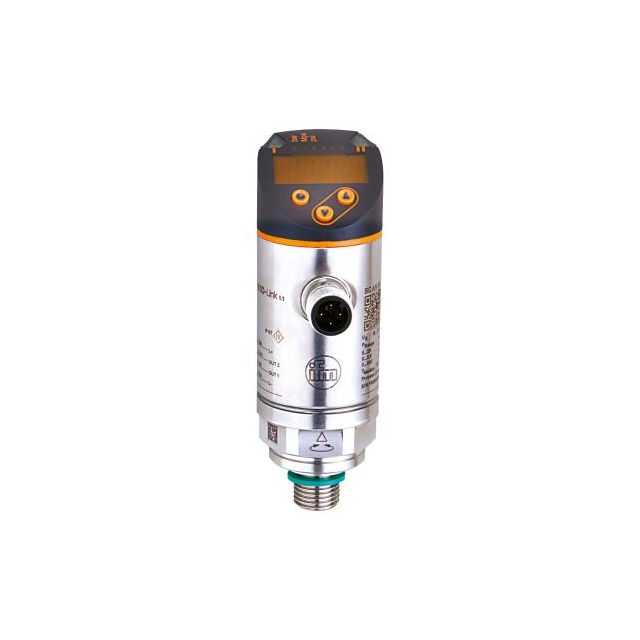

PN7596 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SENSOR 36.26PSI 1/4". Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PN7596
- Description：SENSOR 36.26PSI 1/4"
- Series：-
- Mfr：ifm efector, inc.
- Package：Box
- Applications：-
- Pressure Type：-
- Operating Pressure：36.26PSI (250kPa)
- Output Type：NPN/PNP- NC/NO
- Output：-
- Accuracy：±0.5%
- Voltage - Supply：18V ~ 30V
- Port Size：Male - 1/4" (6.35mm) BSPP
- Port Style：Threaded
- Features：-
- Termination Style：M12, 4 Pin
- Maximum Pressure：725.19PSI (5000kPa)
- Operating Temperature：-25°C ~ 80°C
- Mounting Type：-
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PN7596
Pressure Sensors Transducers Overview
The PN7596 is an electronic pressure sensor designed for industrial applications, measuring relative pressure in liquids and gases. It features a built-in display and two programmable switching outputs for process control. The device operates on a DC voltage range of 18 to 30 V. It supports IO-Link connectivity, enabling data exchange and parameterization. The sensor is engineered for robust performance in demanding environments, providing accurate pressure monitoring for hydraulic systems and mobile equipment.
Pressure Sensors Transducers Feature Summary
- Integrated digital display for real-time process visualization
- Two independently programmable switching outputs
- IO-Link interface for advanced diagnostics and configuration
- Designed for relative pressure measurement in various media
Pressure Sensors Transducers Applications
- Monitoring system pressure in hydraulic power units
- Process control in mobile heavy machinery such as excavators
- Condition monitoring in industrial presses and rolling equipment
- Integration into IIoT networks via IO-Link masters
Pressure Sensors Transducers Procurement Notes
Verify the specific ordering suffix to confirm pressure range, connection type, and cable length requirements. Ensure compatibility with existing IO-Link master ports and voltage supplies. Confirm that the selected variant meets the required ingress protection rating for the installation environment. Cross-reference the part number with official ifm documentation to avoid substitution errors.
Pressure Sensors Transducers Selection Notes
Select this model when visual feedback and dual switching capabilities are required for pressure monitoring. Consider the PN7596 for applications needing IO-Link integration for predictive maintenance. Evaluate the available pressure ranges to match the system's operational limits. Ensure the process connection fits the existing piping or port specifications.
Pressure Sensors Transducers Part Context
This component belongs to ifm's PN series of electronic pressure sensors. The series is characterized by high reliability and ease of use in industrial automation. These sensors are commonly used in sectors requiring precise pressure monitoring, including manufacturing, mobile hydraulics, and process industries. The design emphasizes durability and straightforward integration into modern control systems.
Pressure Sensors Transducers Replacement Considerations
Public confirmed substitute part numbers are not provided in the source material. Consult official ifm documentation for direct replacements or upgrades within the PN series.
